Optical Fiber Cov Ncej Pab Cuam Tshuam, Lub Thawv Dav Hlau, Lub Thawv Faib, ODF Cov Khoom faib tawm
Tus nqi xa tawm tiag tiag zoo sib xws, thiab nws tau thov nyob rau ntau qhov chaw raws li kev siv sib txawv thiab chaw nres nkoj.
Optical fiber faib ncej, lub thawv davhlau ya nyob twg, lub thawv faib fiber ntau, ODF faib ncej yog qee qhov siv txuas rau hauv kev sib txuas fiber ntau

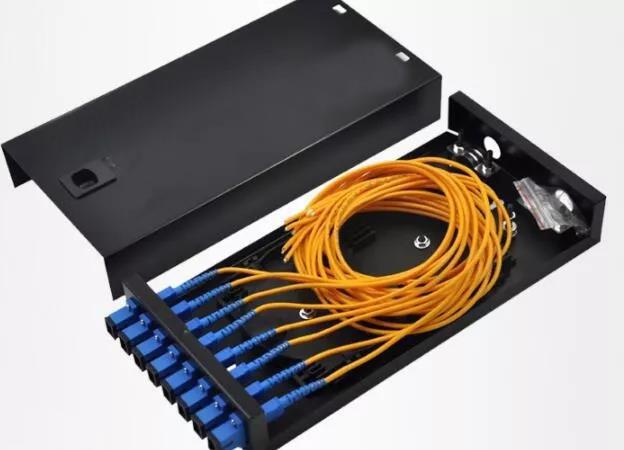

1. Fiber Optic Davhlau ya nyob twg lub thawv
Lub fiber ntau lub davhlau ya nyob twg lub thawv yog lub davhlau ya nyob twg txuas ntawm lub kho qhov muag cable. Ib kawg yog kho qhov muag cable thiab lwm qhov yog pigtail. Nws yog qhov sib luag rau cov cuab yeej siv uas txuas qhov kho qhov muag txuas rau hauv ib qho kho qhov muag. Nws tau nruab rau tus neeg siv' s kho qhov muag cable davhlau ya nyob twg lub thawv ntawm lub chassis. Nws txoj haujlwm yog muab Fiber optics muab kev tiv thaiv kev tiv thaiv thiab kev tiv thaiv ib puag ncig, thiab tso cai rau kev soj ntsuam kom tsim nyog kom tau txais cov qauv siab tshaj plaws ntawm kev tswj hwm fiber ntau. Optical fiber thiab optical fiber fusion splicing, optical fiber ntau thiab pigtail fusion splicing, thiab kev xa tawm ntawm cov khoom sib txuas.
Feem ntau siv cov chaw nres nkoj yog 8 thiab 12 cov chaw nres nkoj.
Siv phab ntsa thiab khoos phis tawm.
Cov kab hluav taws xob fiber ntau lub thawv feem ntau tso rau qhov kawg ntawm kab rov tav kho qhov muag qhov cable. Cov cuab yeej txuas los ntawm qhov kho qhov muag fiber ntau lub thawv los ntawm lub dav hlau kho qhov muag txuas nrog lub pob hluav taws xob yog qhov ze txuas ntawm lub taw tes rau lub davhlau ya nyob twg (hloov khoom siv lossis PC), feem ntau yog 8 lub chaw nres nkoj.

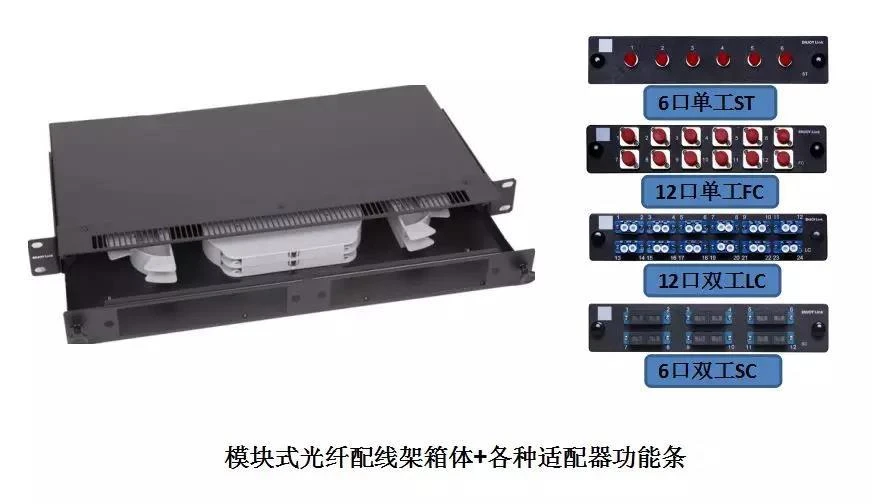

2. Optical fiber faib ncej
Cov kab ke xaib fiber ntau (ODF) yog siv rau kev tsim thiab kev faib tawm ntawm cov caj qaum qaum kho qhov muag nyob rau hauv kev sib txuas lus hauv cov kab hluav taws xob fiber ntau, thiab tuaj yeem yooj yim to taub txoj kev sib txuas, xa tawm thiab teem sijhawm ntawm cov kab hluav Qib ntawm kev sib xyaw ua ke hauv lub network tau nce siab dua thiab ntau dua, thiab muaj ob peb lub cav faib khoom sib txuas uas tau muab tso ua ke ODF, DDF, thiab cov fais fab faib rau ib qho. Nws yog qhov tsim nyog rau kev faib me me thiab nruab nrab ntawm fiber ntau rau cov zej zog, fiber-rau-tsev, series cov qauv thiab cov wireless hauv paus hlau Cov kab hluav taws xob.
Optical fiber faib ncej yog mas muab faib ua 12-chaw nres nkoj fiber faib ncej, 24-chaw nres nkoj fiber faib ncej, 48-chaw nres nkoj fiber faib ncej, 72-chaw nres nkoj fiber faib ncej, 96-chaw nres nkoj fiber faib ncej, thiab 144-chaw nres nkoj fiber faib ncej Cov.

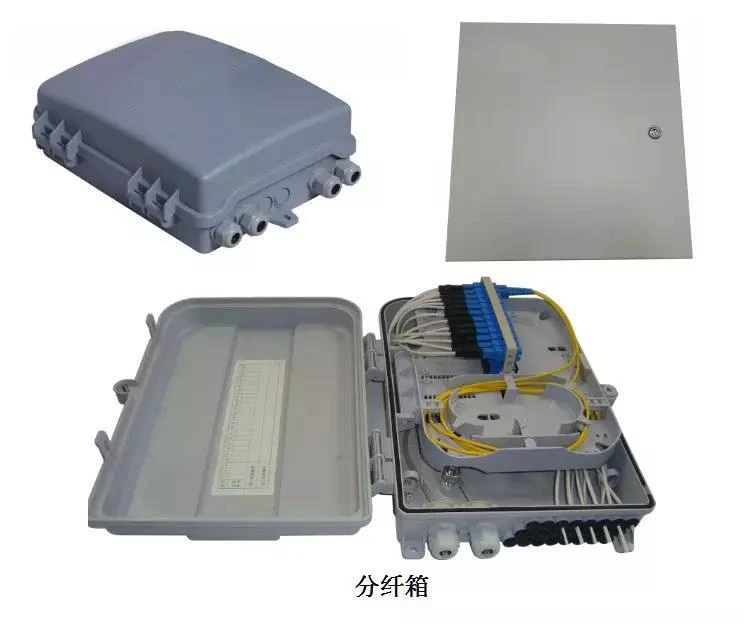

3. Lub thawv faib fiber ntau
Lub thawv xaib fiber ntau yog siv rau FTTB. Hauv FTTH, qhov teeb meem ntawm cov tub ntxhais hluas tsis txaus fiber ntau yog qhov kho qhov muag thiab ntau lub fiber fusion sib cais, uas feem ntau dai saum tus ntaiv ntawm thaj chaw lossis thaj chaw ntsuab ntawm thaj chaw nyob.
24 lossis 48 chaw nres nkoj me me;
Feem ntau siv nyob rau hauv txoj kev hauv tsev tsis muaj zog tam sim no qhov dej;
Qee lub sij hawm nws yog qhov tsim nyog los ntxiv kev kho qhov muag splitter.

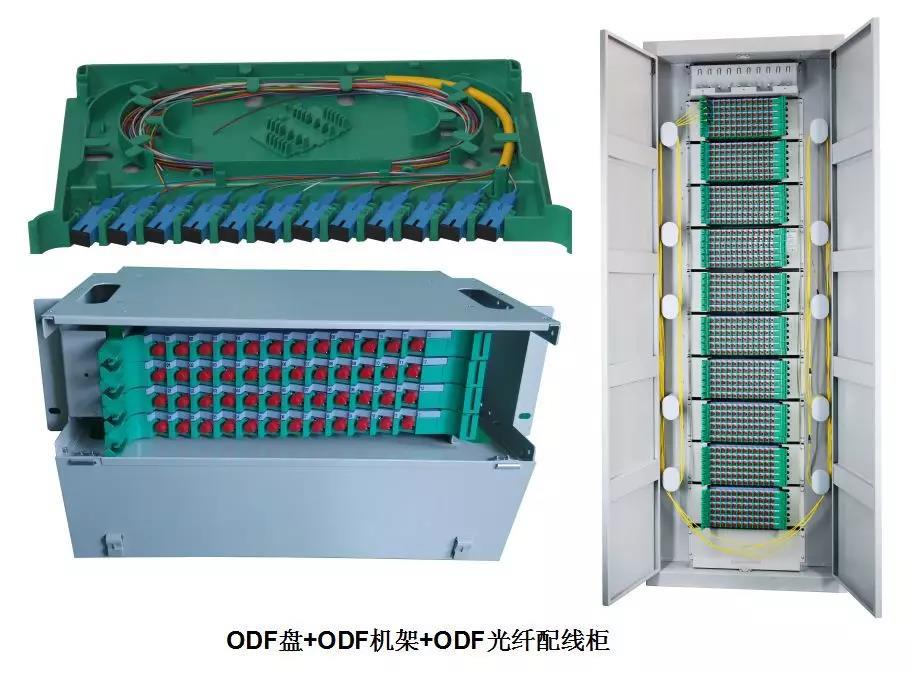

4, ODF faib ncej
Optical fiber faib ncej (Optical Distribution Ncej) yog siv rau kev tsim thiab faib tawm ntawm lub nraub qaum qaum kho qhov muag cable hauv qhov kho qhov muag sib txuas lus fiber ntau, uas tuaj yeem yooj yim kom paub cov txuas, faib tawm thiab teem sijhawm ntawm cov kab hluav taws xob.
ODF cov yam ntxwv tseem ceeb: kev hloov kho tag nrho, tag nrho kev ua haujlwm hauv ntej; kev sib xyaw fusion thiab cov hlau rau hauv ib qho, kev sib hloov ua haujlwm siab; tuaj yeem ntsia tau rau ntawm tus qauv 19-nti khib; haum rau ribbon thiab tsis-ribbon optical cables; daim npav Cov khoom siv hloov khoom siv ntau yam xws li FC, SC, ST, thiab LC tau nruab los ntawm kev sib txuas; cov hloov khoom siv thiab cov khoom siv tau teeb tsa ntawm 30 ° nrog snap-ntawm kev sib txuas, uas tsis tsuas yog ua kom paub tseeb tias qhov khoov ntawm qhov nkhaus ntawm lub jumper, tab sis kuj zam kom tsis txhob laser hlawv, uas yooj yim rau kev ua haujlwm thiab kev tiv thaiv tag; Thiab pigtails muaj ib qhov chaw khaws cia ntau dua 2m.
Chaw nres nkoj 12-1440 qhov tseem ceeb;
Mas siv hauv chav khoos phis tawj, thaj chaw me me, FTTH fiber ntau cov xov hlau;
Hauv txoj kev xaus, kev khiav dej num ntawm cov theem siab saum toj kawg nkaus racks tuaj yeem faib tau yam yog:
Fixed-ua haujlwm optical cables nkag mus rau hauv kab, lawv yuav tsum tau kho tshuab thaum lawv nkag mus rau hauv cov hnab riam sab nraud thiab ntxiv cov cores. Lawv yuav tsum tau nruab nrog cov khoom tiv thaiv av hlau hauv av, ua tiav rau kev tiv thaiv qhov kawg, thiab hloov cov khoom siv hluav taws xob rau pawg thiab tiv thaiv.
Plic Splicing muaj nuj nqi, splicing lub fiber ntau kho qhov muag los ntawm qhov kho qhov muag cable nrog pigtail cable, coiling cov nplua nuj optical fiber ntau rau kev khaws cia, hloov cov kab txuas txuas rau kev tiv thaiv;
Lub adapter thiab cov txuas txuas tau tuaj yeem tso thiab tshem tawm ncaj qha; cov kab kev kho qhov muag tau tuaj yeem xa dawb thiab sim;
Space Cov chaw tsim nyog thiab cov qauv tsim tau raws li qhov yuav tsum tau ua ntawm ntev kawg.
Hauv qhov tseem ceeb, qhov kev faib tawm yog zoo ib yam, thiab qhov muaj nuj nqi tiag tiag yog qhov rov ua dua tshiab. Lawv tsis koom nrog cov ntaub ntawv xa mus rau lawv tus kheej, thiab tau thov rau ntau qhov chaw raws li kev siv sib txawv thiab chaw nres nkoj.
