Khoom Profile

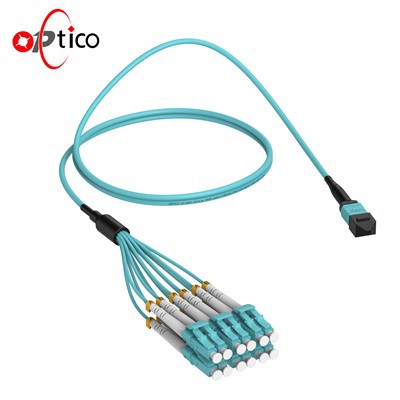

24F MBO S UP4 PATCHCOR yog qhov siab- Kev ua tau zoo fiber ntau qhov kev sib txuas lus zoo thiab cov ntaub ntawv kis rau ntau yam kev siv hauv ntau lub network.
Engineered nrog precision thiab siv cov ntaub ntawv sab saum toj thiab siv cov ntaub ntawv zoo, qhov kev xaiv zoo, ua rau nws xaiv qhov zoo tshaj plaws rau kev ua haujlwm niaj hnub.
24F MBO FC UP4 POSCOR tuaj yeem yog 8F / 12F / 16F / 168F / 92F / 92F / 92F / 142F / 142F / 96F / 44F / thiab tus lej ntawm Cores tuaj yeem raug kho raws li cov tseev kom muaj.
Raws li cov chaw tsim khoom tshaj lij, Optico Medievies, suav nrog cov qauv fiber ntau, luam ntawv, xim xim, thiab lwm yam kev xav tau ntawm cov neeg siv khoom tshwj xeeb.
Cov Khoom Qhia Khoom Khoom
| Cov Khoom Siv Lub Cev | Chaw ua uas tsis tau haus | ||
| Fiber Ntau suav | 8/12/16/24/32/32/48 Fibers / Kev Cai | ||
| Fiber ntau hom | Sm (OS2) / hli (OM3 / OM5) | ||
| Connector Hom | Connector a: US Conec MTP Poj Niam / Txiv Neej; MBO Poj Niam / Txiv Neej | ||
| Connector B: LC / SC / FC / ST | |||
| Thaj yeeb | Ntaus A / B / C | ||
| Cable tsho | PVC / LSZH / ofNP | ||
| Tsho xim | Daj / aqua / magenta / txiv qaub ntsuab / kev cai | ||
| Cable taub (hli) | 3 | ||
| Tsawg kawg nkaus khoov vojvoog | 7.5 | ||
| Fiber ntau thiab khau raj ntev | Tau sib kho | ||
|
|
|||
| Kho qhov muag | Chaw ua uas tsis tau haus | ||
| Kev nkag zig (DB) | Cov qauv kev poob | Tsawg poob | Ultra Tsawg Poob |
| Tsawg dua los yog sib npaug rau 0.7 | Sm tsawg dua los yog sib npaug rau 0.35, mm tsawg dua lossis sib npaug rau 0.5 | Tsawg dua los yog sib npaug rau 0.25 | |
| Rov qab poob (DB) | Sm ntau dua lossis sib npaug rau 60, hli ntau dua lossis sib npaug rau 20 | ||
| Wavelength (nm) | Sm 1310/1550, hli 850/1300 | ||
| Tensile lub zog (n) | Lub sij hawm ntev | Lub sij hawm luv luv | |
| 70N | 220N | ||
| Kev Ua Haujlwm Kub (Qib) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
Khoom nta
Hwm optical kev ua tau zoo
Tus Pharcord Poasts tsawg txoj kev them nyiaj tsawg, feem ntau xws li 0.35 rau 0.7db, kom muaj teeb meem me me ntawm cov ntaub ntawv kis tau. Nrog rau kev poob rov qab ntawm 20 txog 60 dB, nws muab cov paib ua kom zoo tshaj plaws ntawm kev cuam tshuam.
Txhim kho inchared interchangability
Tus Phaj Ua Haujlwm Tshwj Xeeb Tshwj Xeeb InternChantability, nrog tus nqi tsawg dua lossis sib npaug rau 0.20 db. Cov yeeb yaj kiab no ua kom ntseeg tau yooj yim dua tsis muaj teeb liab teeb meem zoo, muab kev yoog raws kev teeb tsa hauv kev teeb tsa hauv kev lis kev cai.
Ruaj khov thiab txhim khu kev qha
Tsim los rau kev thiav, lub patcord muaj qhov zoo tshaj plaws uas muaj kev hloov pauv siab tshaj plaws<0.20 dB after 500 matings, as per EIA-455-21A standard. It can withstand a tensile strength of ≤0.3 dB (max 66N), making it suitable for demanding network environments.
Kev ua haujlwm dav ntau yam
Lub patcord yog tsim los kom muaj txiaj ntsig zoo li ntawm qhov kub ntawm -20℃rau +70 degree, ua rau ntau yam rau ntau yam sab hauv thiab sab nraum zoov.
Corning / YofC Fiber
Us Conec Mertp Txuas Txuas
Xim ceg, yooj yim rau kev txheeb xyuas
Tsis rhiab rau khoov
Peb cov kev ntseeg siab hom yog los ntawm pab pawg ntau lawm
Kev Pab Tawm Tsam
Cov ntaub ntawv nruab nrab daws teeb meem
Cov ntaub ntawv nruab nrab daws teeb meem
100% nruj me ntsis kuaj ua ntej xa khoom
MPO 3D TEST
MBO Polarity Ntsuam Xyuas
Kawg Nto Tes Taw
Cov Ntawv Thov
Txoj kev ua
Wan
Cov ntaub ntawv chaw
Mivv
Kev Xa Tawm (7-15 hnub)
Ntawv pov thawj
Piam
Cawm kab CPPR
ISO
RoHS
Tag nrho cov kev sib tw ntawm kev ntsuam xyuas kev ntseeg tau los ntawm peb -} ib tog lab
Coupling Test
Poob tes
Kev kuaj tsis ntev
High - Tiav Kub Tas Thiab Kev Ntsuam Xyuas Vaum
Siab - qhov ntsuas kub tsawg
Kev Xeem Tawm
Seem Micro Hla ntu kuaj xyuas
Tiv taus rov ua dua dabtsi
Kev kuaj ib leeg ntsug
Ntsuas Qhov Ntsuas Kub
UV Test
Yuav ua li cas peb tuaj yeem sawv ntawm koj
- Cov lus teb ceev tsis pub dhau 24 teev
- Ib - rau -} ib txoj kev pab tswv yim
- Pab kws tshaj lij pab pawg txhawb nqa (RL tuaj yeem ncav cuag 85dB / qib B txuas)
- Super nruj metric tswj (tiag 1000 zaus ntsaws cov kev sim)
- Muaj Ntau Lawm Ntau Lawm
- Tsis txhob hloov tus nqi
