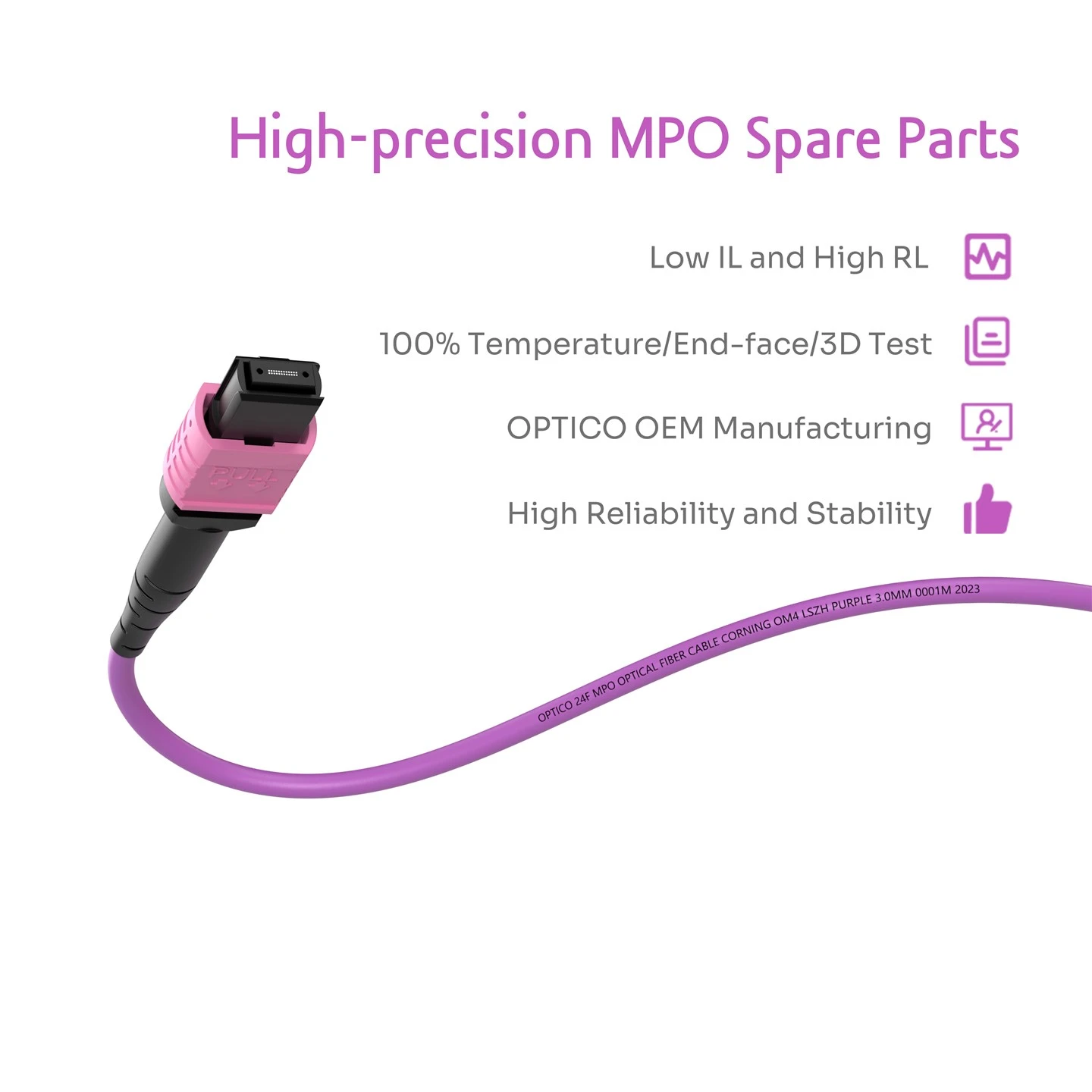

Khoom Profile
Nyob rau hauv lub puas -} evolving toj roob hauv pes ntawm cov ntaub ntawv network tau dhau los, uas muaj kev pab huab, thiab cov ntawv thov kev sib tw.
Txhawm rau ua kom tau raws li cov kev xav tau no, 24F MBT MBO Y rau cov kev xav tau ntawm 400 GBE ethernet thiab {{{4 4 4 4}} gen sib txuas.
Nws yog qhov zoo tagnrho siv ua 40 Gbps (40 Gbase- sr 4) kev sib txuas ntawm ob qho kev hloov pauv rov qab {{}}}}}} kev faib cable.
Cov Khoom Qhia Khoom Khoom
| Cov Khoom Siv Lub Cev | Chaw ua uas tsis tau haus |
| Fiber Ntau suav | 24 fibers |
| Fiber ntau hom |
Leej mov Om4 |
| Connector Hom | Us Conec MTP / Optico MBO txiv neej / Poj niam |
| Thaj yeeb | Ntaus A / B / C |
| Cable tsho | PVC / LSZH / ofNP |
| Tsho xim | Xim paj yeeb |
| Cable taub (hli) | 3.0 |
| Tsawg kawg nkaus khoov vojvoog | 7.5 |
| Fiber ntau thiab khau raj ntev | Tau sib kho |
| Kho qhov muag | Chaw ua uas tsis tau haus | ||
| Kev nkag zig (DB) | Cov qauv kev poob | Tsawg poob | Ultra Tsawg Poob |
| Tsawg dua los yog sib npaug rau 0.5 | Tsawg dua los yog sib npaug rau 0.35 | Tsawg dua los yog sib npaug rau 0.25 | |
| Rov qab poob (DB) | Ntau dua los yog sib npaug rau 35 | ||
| Wavelength (nm) | 850/1300 | ||
| Tensile lub zog (n) | Lub sij hawm ntev | Lub sij hawm luv luv | |
| 70 | 220 | ||
| Kev Ua Haujlwm Kub (Qib) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
Khoom nta
Muab txoj kev hloov pauv ntawm kev hloov mus rau 400 GBE Ethernet, no bandwidth tsim nyog rau cov neeg muaj kev pab ntawm huab, hyperscale cov chaw zov me nyuam, thiab cov tsheb nqa khoom noj. Nrog lub peev xwm los txhawb kev nrawm mus txog 100 metres thaum 850 nm, nws ua kom haum nrog cov kev xav tau ntawm kev hloov pauv network.
MPO txuas tau dav dav dav heev optical interface, txig ua tiav cov kev xav tau ntawm 400g QSFP- dd transceivers. Txawm hais tias yog qhov loj me tib yam li cov qauv sc txuas, yooj yim dua, yooj yim tig cov staining nyob rau hauv tes taws lossis thaj chaw nyob yog qhov chaw muaj kev hwm. Kev suav nrog rub tawm cov tab
Engineered rau cov ntawv thov Kab Rov Tav hauv huab cua thiab poob nthab thiab poob nthab, mev ruggedized plenum - teev tsho. Lub tsho no tsis tsuas yog ua rau cov pa hluav taws thiab cov nplaim taws thiab tseem ua raws li cov qauv kev nyab xeeb.
Lub tsho tiv no ntawm OM4-rated cable ua kom pom zoo sai, tiv thaiv kev sib cav sib ceg thiab cov teeb meem hluav taws xob thiab cov teeb meem daws teeb meem. Qhov kev sib txawv ntawm cov xim xim zoo nkauj ntxiv ib txheej ntawm kev ua tau zoo rau kev tswj hwm network.
Cov Ntawv Thov
Qhov Chaw Ntiag Tug
Backley Network
Optical Module Kev Sib Txuas
Txuas Sib Txuas Kev Sib Txuas
40g lub cev sib txuas nrog kev daws teeb meem
a. Cov Khoom Sib Txuas Txuas
Muab nrog lub siab - kev ua haujlwm hloov thiab a40g puag - sr4 qsfp + 850}} }m optical transceiverModule kom ua tiav 40 GB / s.
b. Chav Fiber Ntau Kev Txuas
Kev siv24F MTP MBO Y CABLE OM3Rau cov cuab yeej sib txuas.
c. Fiber ntau ciling:
Kev siv24 Tseem Taus Module Cassette, thiabHigh - ntom 1u rack mount ntimmus khaws cia thiab npaj cov cables kom tsis txhob swb.
2. Tub ntxhais kom nkag mus txuas ntxiv:Kev siv24F MBO {- mpo poj niam lub cev cable om3Txhawm rau txuas cov tub ntxhais thiab nkag mus rau cov ntsiab lus.
3. Kev nkag mus rau cov kev daws teeb meem
Zoo ib yam rau cov kab core cabling daws.
Ntawv pov thawj
Piam
Cawm kab CPPR
ISO
RoHS
Tag nrho cov kev sib tw ntawm kev ntsuam xyuas kev ntseeg tau los ntawm peb -} ib tog lab
Coupling Test
Poob tes
Kev kuaj tsis ntev
High - Tiav Kub Tas Thiab Kev Ntsuam Xyuas Vaum
Siab - qhov ntsuas kub tsawg
Kev Xeem Tawm
Seem Micro Hla ntu kuaj xyuas
Tiv taus rov ua dua dabtsi
Kev kuaj ib leeg ntsug
Ntsuas Qhov Ntsuas Kub
UV Test
Kev Xa Tawm (7-15 hnub)
Optico muaj ntau txoj kev hloov pauv tau, suav nrog huab cua thauj khoom, thiab qhia cov nkoj thauj mus los, thiab nthuav qhia cov av los ntawm cov neeg ntseeg siab, DHL, thiab UPS. Txawm hais tias koj xav tau nrawm, nqi - ua tau zoo, lossis hloov tau yooj yim, optico tau txais koj. Kev ntseeg Optico kom tau txais koj cov khoom uas lawv yuav tsum mus, nyab xeeb thiab raws sijhawm.
Yuav ua li cas peb tuaj yeem sawv ntawm koj
Cov lus teb ceev tsis pub dhau 24 teev
Ib - rau -} ib txoj kev pab tswv yim
Cov kws tshaj lij pab pawg txhawb nqa
Super nruj metric tswj
Muaj Ntau Lawm Ntau Lawm
Tsis txhob hloov tus nqi pej xeem
Tom qab - kev pabcuam muag
Thaum koj ntsib cov teeb meem nrog koj cov cuab yeej sib txuas lus kho qhov muag lossis cov kab ke, koj tuaj yeem tiv tauj peb thiab xa cov kev pabcuam thov ntawm:
Xov tooj: +86-755-33532578
Email: sales@fiberopticom.com
Whatsapp: 8619129420326
Cov FAQ
Q: Qhov tsawg tshaj plaws khoov hluav taws xob ntawm lub pob tw cable?
Q: Muaj pes tsawg tus ntxig thiab tshem tawm lub sij hawm tuaj yeem tiv thaiv cable walland?
Q: Puas yog OM4 cable rov qab tau tshaj nrog Om3-rated system?
Q: Puas yog MBO Transceiver txiv neej lossis poj niam?
Q: MPO / MTP kev daws teeb meem nrog kev hloov kho network thiab kev nthuav dav zuj zus?
