Khoom Profile
Lub 48F 4x12F MTP MPO Fiber Patch Cord OS2 UPC boasts ib tug robust configuration nrog 48 fibers, koom nyob rau hauv ib tug 4x12 kev npaj, muab versatility nyob rau hauv high-density connectivity daws teeb meem. Tsim los rau ib hom kev siv nrog OS2 (Optical Single-Mode 2) fiber ntau, nws ua ke nrog kev tsim kho qib siab, precision, thiab yoog raws, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev thov cov ntawv thov fiber ntau.
OPTICO muaj kev yooj yim nrog customizable lengths / fiber ntau hom / connector hom / cable luam ntawv thiab lwm yam, tso cai rau cov neeg siv los kho lub patch qaum rau tej yam kev cai thiab xa mus scenarios.
Khoom Specifications
| Lub cev muaj zog | Parameter |
| Fiber suav | 48 fibers |
| Fiber hom |
OS 2 |
| Hom Connector | US Conec MTP / OPTICO MPO Txiv neej / Poj niam |
| Polarity | Hom A / B / C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Xim | Daj |
| Cable Diameter (hli) | 4.8 |
| Yam tsawg kawg nkaus Khoov Radius | 7.5 |
| Fiber thiab khau raj ntev | Customizable |
| Optical Properties | Parameter | ||
| Insertion poob (dB) | Txheem Poob | Kev poob qis | Ultra Tsawg Loss |
| Tsawg dua lossis sib npaug rau 0.5 | Tsawg dua lossis sib npaug rau 0.35 | Tsawg dua lossis sib npaug rau 0.25 | |
| Rov Los Loss (dB) | Ntau dua lossis sib npaug li 35 | ||
| Lub wavelength (nm) | 1310/1550 | ||
| Tensile zog (N) | Lub Sij Hawm Ntev | Lub Sijhawm luv | |
| 70 | 220 | ||
| Ua haujlwm kub (degree) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
Khoom nta

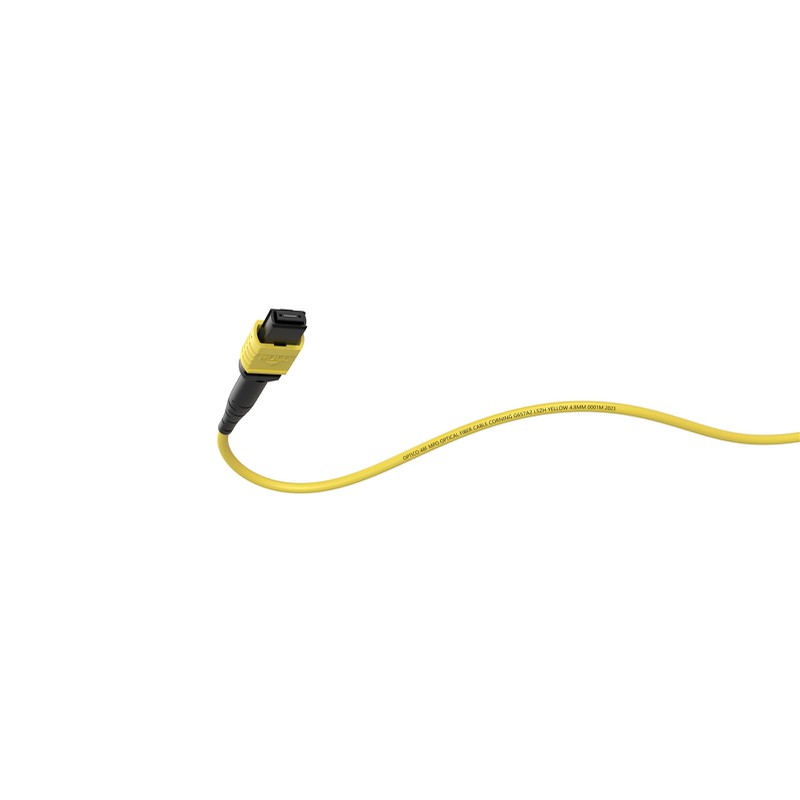

MPO MTP connectors khav theeb 3 kev xaiv: tus qauv poob (0.5dB), poob qis (0.35dB), thiab poob qis (0.25dB), lav kev ntseeg tau thiab kev xa cov ntaub ntawv zoo. Cov qauv kev ua tau zoo no txhawb nqa tag nrho cov txiaj ntsig ntawm fiber ntau thaj qaum.
MT ferrule, meticulously molded, ua kom raug thiab kev ntseeg siab hauv cov ntaub ntawv xa mus. Qhia pins nrog siab precision lav kev sib tw, txo cov teeb liab poob thiab ua kom zoo tshaj plaws.

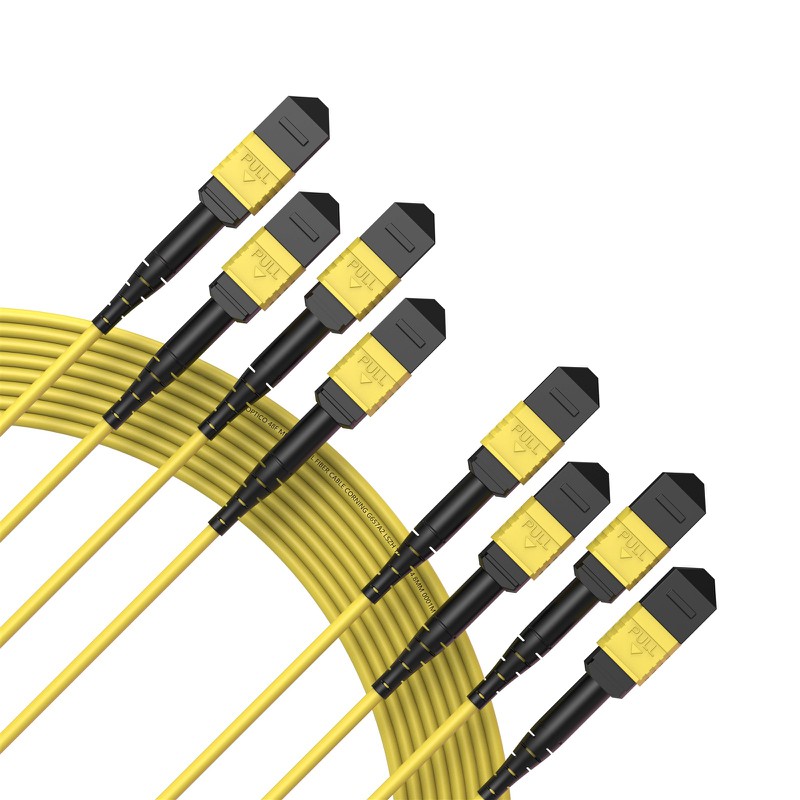

Txawm hais tias nws cov qauv tsim, MPO / MTP connector haum rau 4, 8, 12, thiab 24 fibers, optimizing qhov chaw siv nyob rau hauv ntom cov ntaub ntawv chaw ib puag ncig.

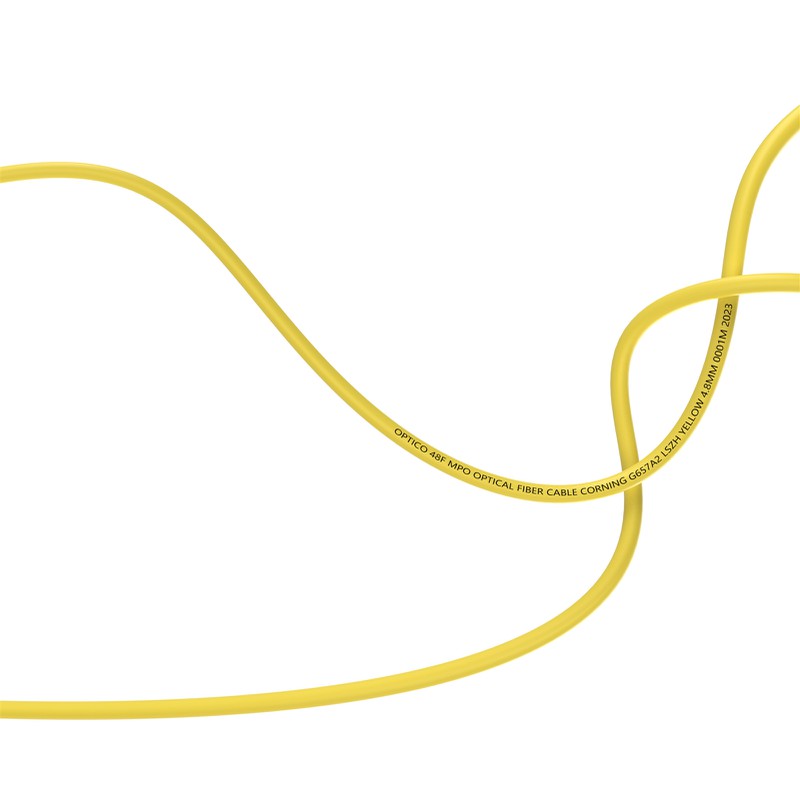

Cov khoom sib txuas ua raws li IEC 61754-7 thiab EIA/TIA-604-5 cov qauv, kom ntseeg tau tias muaj kev sib raug zoo thiab kev sib koom tes hauv kev teeb tsa sib txawv. Kev soj ntsuam nruj tau lees paub qhov ua tau zoo ntawm kev kho qhov muag, txhim kho kev ncaj ncees hauv lub network thiab ua kom muaj kev ntseeg tau zoo ib yam.
Daim ntawv thov
High Density Data Center
Rov qab Network
Kev sib txuas ntawm Optical Module
Daim ntawv pov thawj
CE
CPR
ISO
RoHS
Tag Nrho Cov Kev Ntsuas Kev Ntseeg Los ntawm Thib Peb Lub Chaw Haujlwm
Coupling Test
Tso Test
Durability Test
High-Constant Temperature thiab Humidity Test
High-low Temperature Test
Poob Test
Micro Cross Section Inspection Test
Resistant Repeated Bending Test
Single Vertical Hlawv Test
Temperature Change Test
UV Test
Kev xa khoom (7-15 Hnub)
OPTICO muaj ntau yam kev xaiv xa khoom, suav nrog huab cua freight, hiav txwv freight, av freight, thiab nthuav shipping los ntawm cov neeg muab kev ntseeg siab zoo li FedEx, DHL, thiab UPS. Txawm hais tias koj xav tau kev ceev, kev ua tau zoo, lossis kev hloov pauv, OPTICO tau txais koj them. Cia siab rau OPTICO kom tau txais koj cov khoom uas lawv xav tau mus, nyab xeeb thiab raws sijhawm.
Yuav Ua Li Cas Peb Sawv Los Ntawm Koj
Teb ceev ceev hauv 24 teev
Ib-rau-ib-ib-rau-ib Kev Pabcuam
Kev Pabcuam Kev Pabcuam Kev Ua Haujlwm
Super nruj Tswjhwm zoo
Muaj peev xwm ntau lawm
Tsis txhob Hloov Tus Nqi Arbitrarily
Kev pab cuam tom qab muag
Thaum koj ntsib teeb meem nrog koj cov khoom siv sib txuas lus kho qhov muag lossis qhov system, koj tuaj yeem tiv tauj peb thiab xa daim ntawv thov kev pabcuam ntawm:
Xov tooj: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: Patch qaum puas tuaj yeem hloov kho rau cov qauv tsim tshwj xeeb?
Q: Puas muaj cov kev xaiv sib txawv ntawm qhov txuas txuas?
Q: Dab tsi yog txoj kab uas hla ntawm txoj kab uas siv nyob rau hauv thaj qaum?
Q: Dab tsi yog hom polishing ntawm cov connectors?
