Khoom Profile

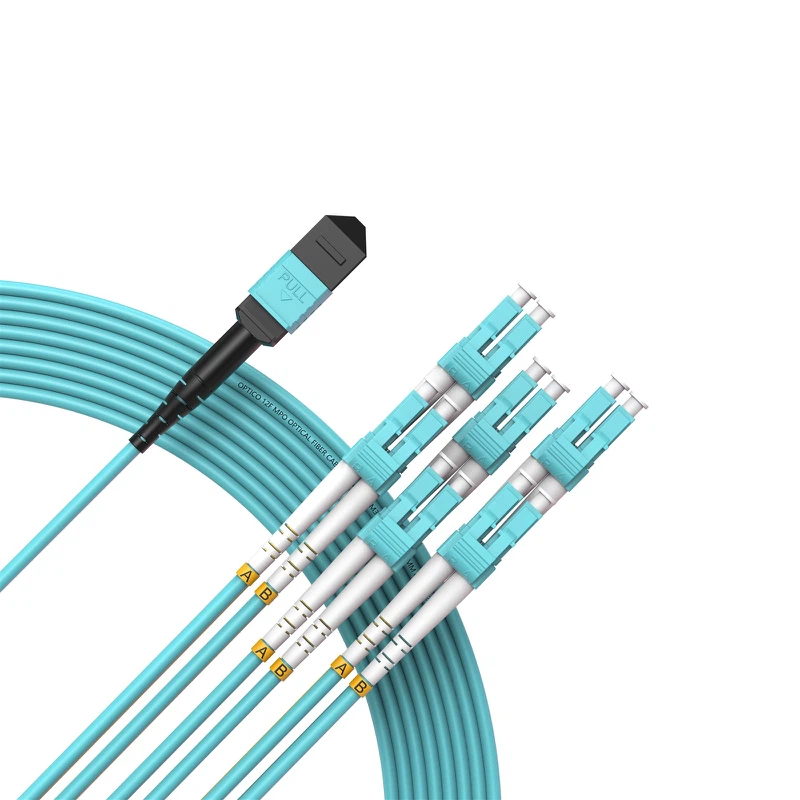

Featuring MO connector, ib tug tswv cuab ntawm MT Series Series Series, MBO rau LC Ntxhoo Tawm CABLE suav ob phau ntawv qhia lub qhov thiab phau ntawv qhia txog pins.
Cov cheeb tsam ntawm Mrows rau LC ntxuam tawm cov txheej txheem sib txawv thiab kev sib txuas nyab xeeb, txo cov cim taw qhia kev ua tau zoo thiab ua kom pom kev zoo tshaj plaws.
MPO mus rau LC ntxuam tawm ntawm cable yog crafted siv hlua siv sab saum toj - cov ntaub ntawv tsis sib xws, lav kev ua haujlwm ruaj khov thiab ntev.
MTP Breakout Cable yog muaj nyob rau hauv ntau cov kev teeb tsa, ua kom pom kev rau cov kev tseev kom muaj.
MTP breakout cable muaj qhov hloov tau yooj yim thiab sib xyaw, tso cai rau kev sib xyaw ua ke rau hauv cov kev koom ua ke network uas muaj tam sim no.
Cov Khoom Qhia Khoom Khoom
| Cov Khoom Siv Lub Cev | Chaw ua uas tsis tau haus | ||
| Fiber Ntau suav | 8/12/16/24/32/32/48 Fibers / Kev Cai | ||
| Fiber ntau hom | Sm (OS2) / hli (OM3 / OM5) | ||
| Connector Hom | Connector a: US Conec MTP Poj Niam / Txiv Neej; MBO Poj Niam / Txiv Neej | ||
| Connector B: LC / SC / FC / ST | |||
| Thaj yeeb | Ntaus A / B / C | ||
| Cable tsho | PVC / LSZH / ofNP | ||
| Tsho xim | Daj / aqua / magenta / txiv qaub ntsuab / kev cai | ||
| Cable taub (hli) | 3 | ||
| Tsawg kawg nkaus khoov vojvoog | 7.5 | ||
| Fiber ntau thiab khau raj ntev | Tau sib kho | ||
|
|
|||
| Kho qhov muag | Chaw ua uas tsis tau haus | ||
| Kev nkag zig (DB) | Cov qauv kev poob | Tsawg poob | Ultra Tsawg Poob |
| Tsawg dua los yog sib npaug rau 0.7 | Sm tsawg dua los yog sib npaug rau 0.35, mm tsawg dua lossis sib npaug rau 0.5 | Tsawg dua los yog sib npaug rau 0.25 | |
| Rov qab poob (DB) | Sm ntau dua lossis sib npaug rau 60, hli ntau dua lossis sib npaug rau 20 | ||
| Wavelength (nm) | Sm 1310/1550, hli 850/1300 | ||
| Tensile lub zog (n) | Lub sij hawm ntev | Lub sij hawm luv luv | |
| 70N | 220N | ||
| Kev Ua Haujlwm Kub (Qib) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
Khoom nta
Kev sib txuas txuas sib txuas
Lub Mood rau LC ntxuam tawm cable ua rau kev sib txuas seamless txuas ntawm MPO thiab LC txuas, tshem tawm cov teeb meem sib txuas thiab ua kom yooj yim network.
Txhim kho kev ua tau zoo
Nrog nws cov kev sib thooj thiab cov roj av tsawg ntawm 0.35db, MroO rau LC ntxov kis cov cim kev sib kis, ua rau txhim kho tag nrho cov network kev ua haujlwm.
MTP fanout cable muab cov ntaub ntawv txhim khu kev qha thiab siab} cov ntaub ntawv zoo sib kis, txo cov teeb liab teeb tsa kev ua haujlwm thiab ua kom muaj txiaj ntsig network.
Yooj Yim Sib Tham
Lub cable compatibility thiab yoog kom muaj kev koom ua ke yooj yim rau hauv Instrumentation instone.
MTP fanout cable tuaj yeem yog sib xyaw ua ke rau ntau qhov kev teeb tsa network, txo kev cuam tshuam nrog kev cuam tshuam nrog kev hloov kho network lossis nthuav dav.
Daim Ntawv Thov Versatility
Lub Mrows rau LC ntxuam tawm cov cabers materers rau ntau cov ntawv thov, suav nrog cov chaw zov me nyuam, nrog cov chaw muag khoom, kev sib tham, thiab siab} qhov chaw ntom ntom ntom.
MTP fanout cable muaj cov kev txhim khu kev qha thiab txuag tau rau cov kev xav tau sib txuas tau zoo thiab kev ua tau zoo.
Peb cov kev ntseeg siab hom yog los ntawm pab pawg ntau lawm
Cov Ntawv Thov

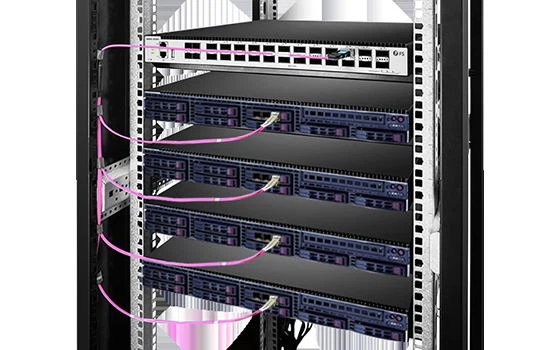

8-core Mev Fiber Jumper paub tseeb kev sib txuas ncaj qha los ntawm 40G SR4 rau 10G SR

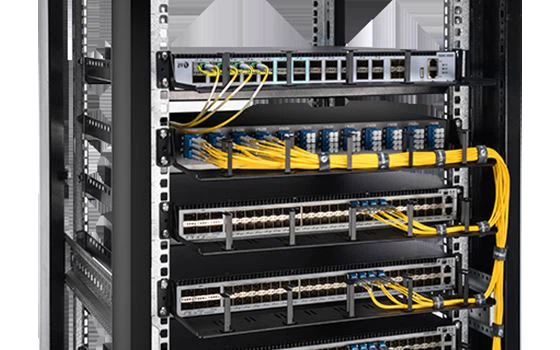

12-core mpmm zom jumper thiab 40g adapter vaj huam sib luag tau paub 10g mus rau 40g network txhim kho

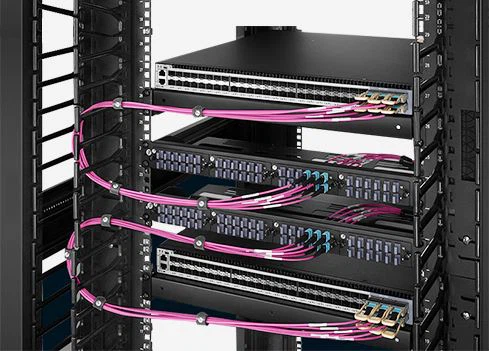

40g SR4 thiab 12-Core Mev Vtpmo Galmload Fas Jumper Ncaj Ncees
100% nruj me ntsis kuaj ua ntej xa khoom
Il / RL Ntsuam Xyuas

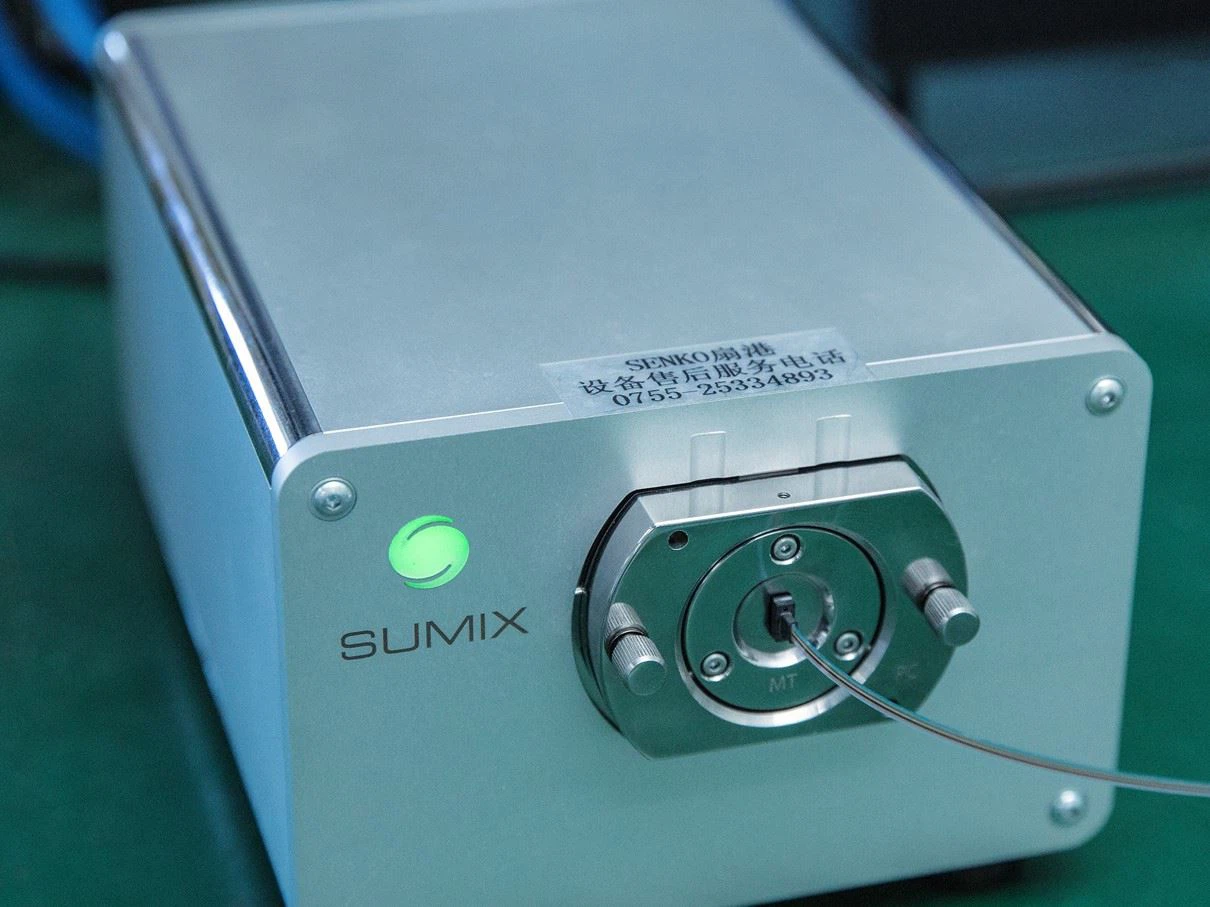

Xeem Ntawv 3

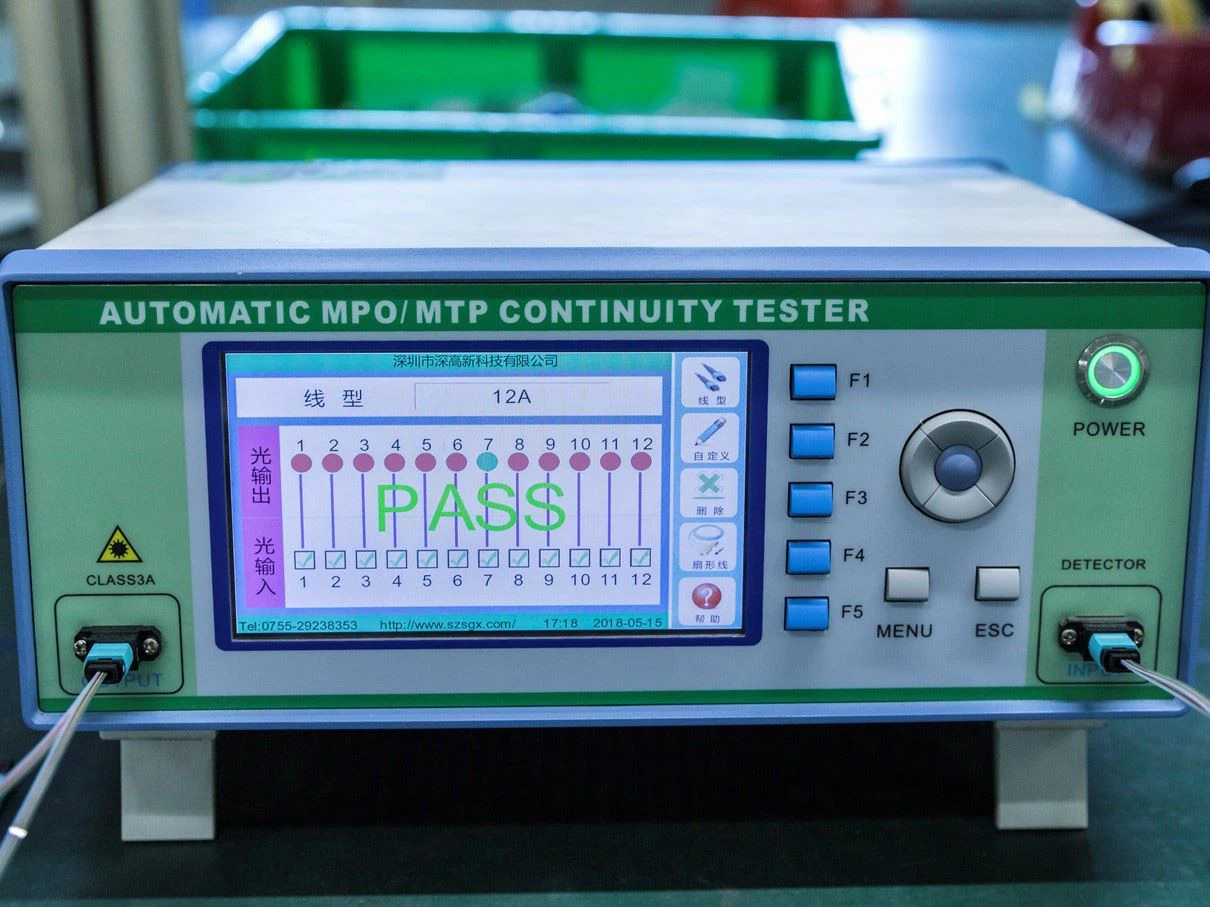

Kuaj xyuas polarity
Kev Tsim Yeeb Ntau Lawm
Optico muaj cov pab pawg muaj zog ntawm engineers, cov kev qhia ntau lawm, xim, cov khoom sib txuas, cov lej uas muaj peev xwm kho tau.
Txais tos tiv tauj peb kom hloov koj cov kev xav tau tshwj xeeb.
Txuas Sib Txuas Kev Sib Txuas
10G lub cev sib haum nrog kev daws teeb meem
1. Tub ntxhais kab cabling:
a. Cov Khoom Sib Txuas Kev:
Hauv qhov tseem ceeb txuas, ib qho hloov yog nruab nrog tus10G SFP + 300 m 850nmKho qhov muag transceiver macule xa thiab tau txais cov cim. Cov qauv no pab tau cov ntaub ntawv kis tau nthuav dav txog li 10 Gbps, nrog qhov kev sib kis tau ntev ntawm 300 meters, ua rau lawv haum rau cov chaw muab cov ntaub ntawv thiab cov chaw loj network.
b. Txoj Kev Sib Txuas Fiber Ntau:
Kev sib txuas yog tsim siv ntawmLC UPC mus rau LC UPC Duplex OM4 cov kab sib npaug ntawm thajlossisMTP rau LC 12F COMET PARD CABLE.
c. Fiber ntau ciling:
24F 2 × 12F MBO-6LC MBO Cassette, muaj 24 LC cov qauv Duplex, tau siv nrog ib1u high - ntev fiber ntauCov. Cov teeb tsa no kho cov kev tswj hwm thiab minimizes cable swb.
2. Tub ntxhais kom nkag mus txuas ntxiv:
16f MBO {- mpo poj niam lub cev cable om3lossis12F MTP MPO Fiber NtauYuav siv tau los hu rau kev sib txuas lus tseem ceeb thiab nkag mus rau hauv cabling.
3. Kev nkag mus rau cov kev daws teeb meem:
Tib txoj kev sib txuas ntawm cov tub ntxhais tseem tuaj yeem siv rau kev nkag mus rau cov kev sib txuas lus daws teeb meem, ua kom muaj zog thiab sib xws thoob plaws hauv lub network.
Ntawv pov thawj
Piam
Cawm kab CPPR
ISO
RoHS
Tag nrho cov kev sib tw ntawm kev ntsuam xyuas kev ntseeg tau los ntawm peb -} ib tog lab
Coupling Test
Poob tes
Kev kuaj tsis ntev
High - Tiav Kub Tas Thiab Kev Ntsuam Xyuas Vaum
Siab - qhov ntsuas kub tsawg
Kev Xeem Tawm
Seem Micro Hla ntu kuaj xyuas
Tiv taus rov ua dua dabtsi
Kev kuaj ib leeg ntsug
Ntsuas Qhov Ntsuas Kub
UV Test
Daim Ntawv Qhia Khoom
| Thaj yeeb | Connector Hom | Kawg nto | Fiber Ntau suav | Qho ntev |
| A | MBO Poj Niam | UPC | 8 | 1m |
| B | MBO Tus Txiv Neej | AP | 12 | 2m |
| C | MTP Poj Niam | 24 | 3m | |
| MTP txiv neej | ... | ... | ||
| Kab lig kev cai | Kab lig kev cai |
Kev Xa Tawm (7-15 Hnub)
Yuav ua li cas peb tuaj yeem sawv ntawm koj
- Cov lus teb ceev tsis pub dhau 24 teev
- Ib - rau -} ib txoj kev pab tswv yim
- Cov kws tshaj lij pab pawg txhawb nqa
- Super nruj metric tswj
- Muaj Ntau Lawm Ntau Lawm
- Tsis txhob hloov tus nqi
Cim npe nrov: MBO rau LC ntxuam tawm ntawm cable, Suav teb, manufacturers, cov chaw muag khoom, Hoobkas, lag luam wholesale, Mekas
