Shenzhen Optico Kev Sib Txuas Lus Co., Ltd. yog ib qho ntawm cov tuam txhab ntseeg siab tshaj plaws thiab cov neeg muag khoom ntawm mpo pob tw cable om4 hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale siab zoo customized khoom ntawm tus nqi sib tw peb lub Hoobkas. Yog tias koj muaj lus nug txog cov qauv dawb, thov koj xav email rau peb.
Khoom Profile
MPO lub cev cable ntawm Optico yog qhov siab - sib dhos ntawm MPO MTP txuas thiab Corning fiber ntau cable. Raws li AI txhim kho thiab xav tau hauv cov chaw khaws ntaub ntawv tau txais cov qauv siab dua thiab siab dua, MPO OM4, txawm tias OM5 series dhau los ua ib qho tseem ceeb hauv kev txhim kho cabling kev daws teeb meem, kom ua tau raws li qhov xwm txheej ntawm qhov chaw txwv thiab ib puag ncig hnyav, txo cov kev teeb tsa network lossis kev teeb tsa lub sijhawm thiab tus nqi.
Optico tshwj xeeb hauv kev tsim thiab muab ntau yam ntawm MPO/MTP lub cev thiab kiv cua- tawm hom. Cov cables no muaj nyob rau hauv 8/12/24/48 fiber ntau configurations thiab tuaj nrog ntau yam cable tsho hom, xim, thiab ntev. Lawv raug siv rau kev sib txuas cov kab sib txuas, cov vaj huam sib luag los yog MPO fanouts, hla MDA, HDA thiab EDA zones.
Nta & Cov txiaj ntsig
--Data Center Npaj ntim ntim kom cov chaw huv huv kom tswj tau cov kab mob zoo dua
--Txiv los ntawm 40G thiab 100G nrog MPO cov kev daws teeb meem ua ntej rau kev kho kom zoo dua qub
--Exhaustive tsim validation tiv thaiv TIA cov qauv los txhim kho zoo
--Qhov kev ua tau zoo tshaj plaws nrog 0.2 dB OM4 MPO connectors
Khoom Specifications
| Lub cev muaj zog | Parameter |
| Fiber suav | Customizable |
| Fiber hom |
SM(OS2)/MM(OM3/OM4/OM5) |
| Hom Connector | MTP Poj Niam / Txiv Neej; MPO Poj Niam/txiv neej |
| Polarity | Hom A / B / C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Xim | Daj/Aqua/Rose/Purple/Green |
| Cable Diameter (hli) | 3.0 |
| Yam tsawg kawg nkaus Khoov Radius | 7.5 |
| Fiber thiab khau raj ntev | Customizable |
| Optical Properties | Parameter | ||
| Insertion poob (dB) | Txheem Poob | Kev poob qis | Ultra Tsawg Loss |
| Tsawg dua los yog sib npaug li 0.5 | Tsawg dua los yog sib npaug li 0.35 | Tsawg dua los yog sib npaug li 0.25 | |
| Rov qab poob (dB) | Ntau dua lossis sib npaug li 35 | ||
| Lub wavelength (nm) | SM: 1310/1550; Loj: 850/1300 | ||
| Tensile zog (N) | Lub Sij Hawm Ntev | Lub Sijhawm luv | |
| 70N | 220N | ||
| Ua haujlwm kub (degree) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
100% nruj me ntsis kuaj ua ntej xa khoom
IL/RL test
3D Test

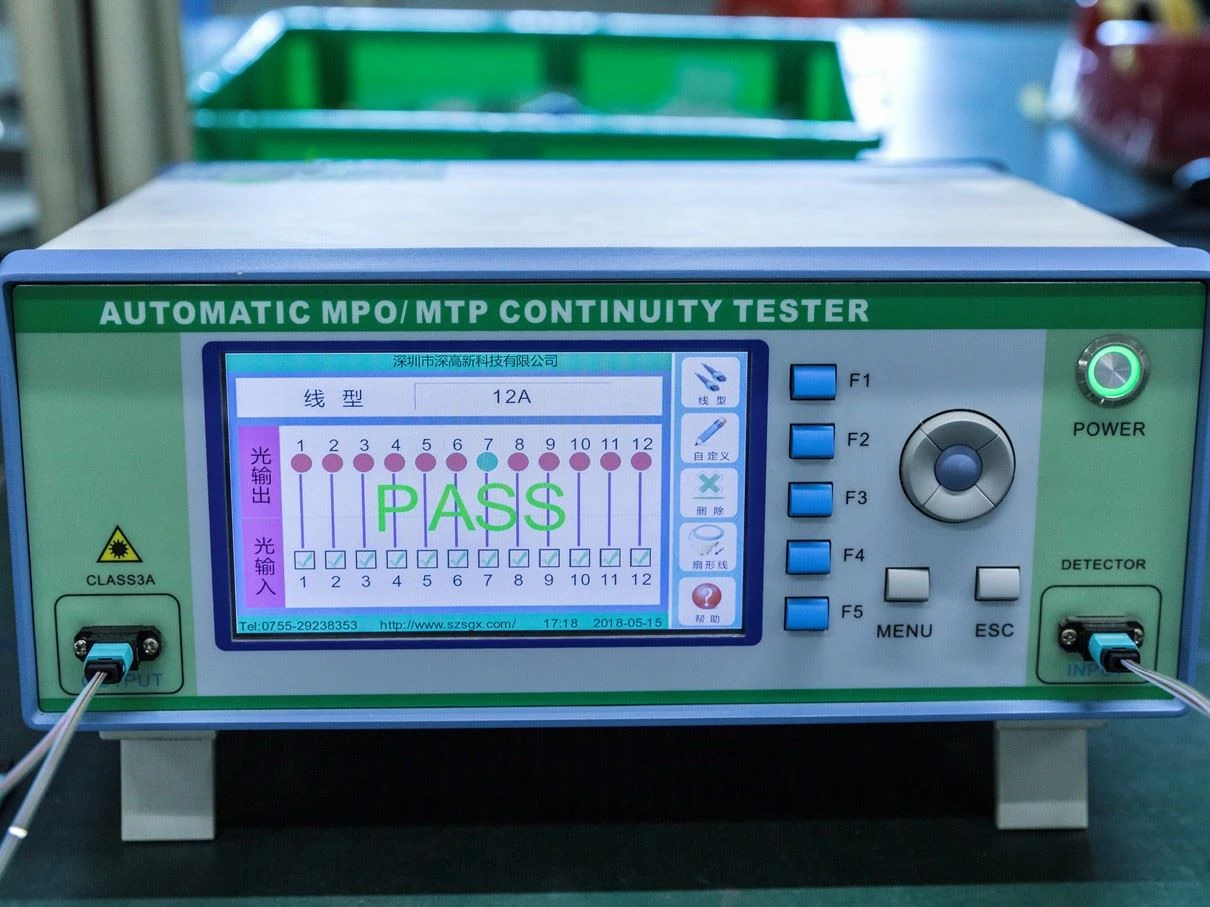

Polarity Test
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cable Solution:
ib. Cov Khoom Siv Txuas Txuas: Siv lub siab - kev ua haujlwm hloov nrog25G SFP28 Optical Transceiver Modulexa thiab txais cov teeb liab, cov ntaub ntawv kis tau tus nqi tuaj yeem ncav cuag qhov nrawm ntawm 25.78 Gb / s.
b. Txoj Kev Txuas Fiber: Txuas cov khoom siv nrogLC UPC rau LC UPC Duplex OM4 Multimode Patch Cordlos yogMTP Patch Cord 12 Cores.
c. Fiber Cable Management:
SivMTP-12 Cassette (12 Fibers OM4 Multimode, MTP rau 6 x LC Duplex)thiab aSiab -Density 1U Rack Mount Enclosure nrog zawv zawg tub rau khoomrau lub koom haum cable.
Xwb, siv24F 2 × 12F MPO-6LC MPO Cassette OM3, Quad LC tib yam1U Rack Mount Enclosure.
2. Tub ntxhais rau kev sib txuas
Siv12F MTP MPO Fiber Cablerau core-rau- nkag mus rau kev sib txuas.
3. Kev daws teeb meem Cable
Qhov no tsom rau cov specifications ntawm cov tub ntxhais cable kev daws teeb meem.
Daim ntawv pov thawj
CE
CPR
ISO
RoHS
Tag Nrho Cov Kev Ntsuas Kev Ntseeg Los ntawm Thib Peb -Lab
Coupling Test
Tso Test
Durability Test
High -Kev ntsuas kub thiab av noo tas mus li
High -Kev ntsuas kub qis
Poob Test
Micro Cross Section Inspection Test
Resistant Repeated Bending Test
Single Vertical Hlawv Test
Temperature Change Test
UV Test
Daim ntawv qhia kev yuav khoom
| Polarity | Xim | Hom kab | Fiber ntev | Fiber suav |
| A | Daj | Tsis muaj fiber ntau ribbon | 1m | 8 |
| B | Txiv kab ntxwv | Oval | 2m | 12 |
| C | Aqua | Lub voj voog | 3m | 24 |
| ... | ... | ... | ... | |
| Kev cai | Kev cai | Kev cai | Kev cai |
Delivery (7-15 hnub)
