Khoom Profile
Txhim khu koj cov -}} fiber ntau cabling infrastructure nrog lub tshiab tshiab MTP LC 12f COM COOL CABLE.
Tsim los muab kev txhim kho kom tau zoo thiab kev siv hluav taws xob no yog tsim kom haum rau MTP LC 12F Core MTP thaj chaw cable.
Los ntawm kev sib xyaw ua ntej thev naus laus zis thiab siab - Cov khoom siv tau zoo, MTP LC 12F COMPLE PARTER txoj kev rau kev daws teeb meem thiab thev naus laus zis.
MTP LC 12F COMPOND PART CABLE yog ib qho cable tsim rau Fiber Optic sib txuas, uas tuaj yeem ua tiav rau cov txiaj ntsig kho qhov muag, uas tuaj yeem khaws cia chaw thiab zam kev tsis sib haum cable.
Cov Khoom Qhia Khoom Khoom
| Cov Khoom Siv Lub Cev | Chaw ua uas tsis tau haus | ||
| Fiber Ntau suav | 8/12/16/24/32/32/48 Fibers / Kev Cai | ||
| Fiber ntau hom | Sm (OS2) / hli (OM3 / OM5) | ||
| Connector Hom | Connector a: US Conec MTP Poj Niam / Txiv Neej; MBO Poj Niam / Txiv Neej | ||
| Connector B: LC / SC / FC / ST | |||
| Thaj yeeb | Ntaus A / B / C | ||
| Cable tsho | PVC / LSZH / ofNP | ||
| Tsho xim | Daj / aqua / magenta / txiv qaub ntsuab / kev cai | ||
| Cable taub (hli) | 3 | ||
| Tsawg kawg nkaus khoov vojvoog | 7.5 | ||
| Fiber ntau thiab khau raj ntev | Tau sib kho | ||
|
|
|||
| Kho qhov muag | Chaw ua uas tsis tau haus | ||
| Kev nkag zig (DB) | Cov qauv kev poob | Tsawg poob | Ultra Tsawg Poob |
| Tsawg dua los yog sib npaug rau 0.7 | Sm tsawg dua los yog sib npaug rau 0.35, mm tsawg dua lossis sib npaug rau 0.5 | Tsawg dua los yog sib npaug rau 0.25 | |
| Rov qab poob (DB) | Sm ntau dua lossis sib npaug rau 60, hli ntau dua lossis sib npaug rau 20 | ||
| Wavelength (nm) | Sm 1310/1550, hli 850/1300 | ||
| Tensile lub zog (n) | Lub sij hawm ntev | Lub sij hawm luv luv | |
| 70N | 220N | ||
| Kev Ua Haujlwm Kub (Qib) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
Cov khoom lag luam

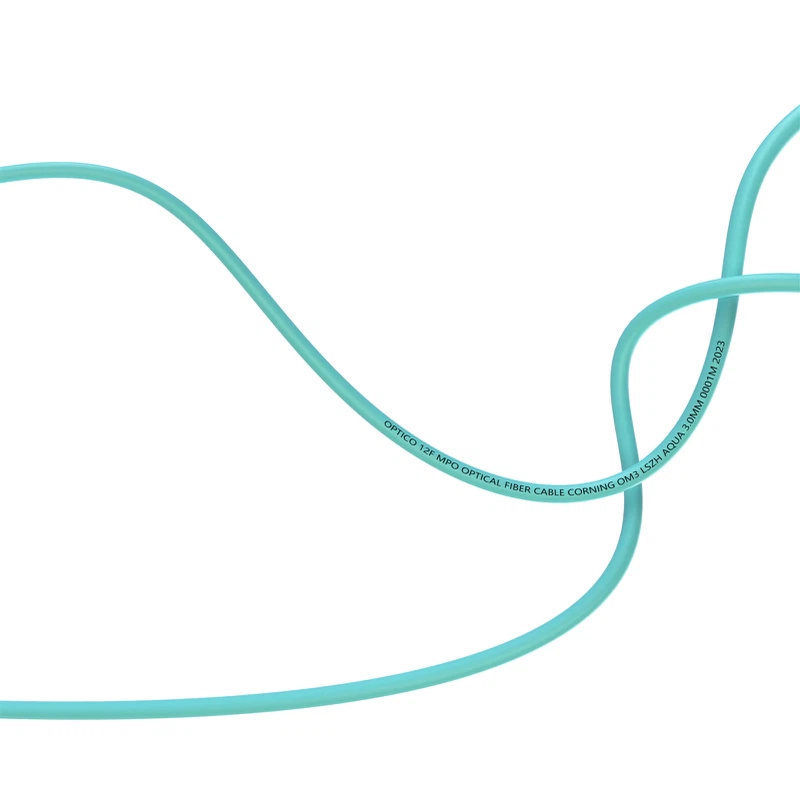

Corning cleccurve 10-gigabit multimode fiber ntau
Txhua tus peb MPO ferrules yog los ntawm Hakusan
Kev khoov rau me me thiab cov hlua sib tw sib tw
Hom Tshiab Spare Xeem
Khoom nta
Ntau ntau fiber ntau thiab hom
Xaiv los ntawm 4, 8, 12, 24, 24, lossis 48 Fiber xaiv, nrog ob qho tib si {5} hom thiab multimode fiber ntau yam muaj. Qhov kev hloov pauv ntawm 24 fiber ntau MPO / MTP thaj thaj ua rau kev sib koom ua ke rau cov chaw sib xyaw ua ke thiab cov ntawv thov.
Kev xa tawm sai sai, siab ntom ntom, thiab siab ntseeg tau
Lub MTP Poj Niam Mus Rau MTP Poj Niam Cov Khaub Hlig Cable yog tsim rau cov kev xa tawm sai sai hauv cov chaw siab, xws li cov chaw hauv cov ntaub ntawv. Nws cov kev ua tau zoo txhim khu kev ua kom zoo nkauj sib txuas thiab minimizes kev cuam tshuam nrog kev cuam tshuam nrog kev cuam tshuam.
Tsis tshua muaj cov peev txheej poob qis thiab siab rov qab poob
24 fiber ntau ntawm cov kab ke muaj cov qauv kev ua tau zoo nrog kev poob siab heev thiab tsis tshua muaj kev poob siab thiab txo cov cim kev ncaj ncees thiab txo qis kev sib raug zoo.
Telcordia Gr-1435-Cov teeb meem tseem ceeb 2 ua raws
Cov pob tw cable ua raws li lub telcordia gr- 1435-tseemcore qhov teeb meem 2 tus qauv, uas lav zoo zoo thiab kev lav tau zoo.
Peb cov kev ntseeg siab hom yog los ntawm pab pawg ntau lawm
Cov Ntawv Thov
Nce 40g & 100g Daim Ntawv Pom Zoo
Cov ntaub ntawv chaw
Txoj kev ua
Transceivers ntaus ntawv
100% nruj me ntsis kuaj ua ntej xa khoom
Il / RL Ntsuam Xyuas
Xeem Ntawv 3
Lub voj voog kub
MBO Polarity Ntsuam Xyuas
Kev Tsim Yeeb Ntau Lawm
Optico muaj ib pab neeg muaj zog ntawm engineers, cov kev qhia ntau lawm, xim, cov khoom siv, thiab lwm yam tshwj xeeb tuaj yeem raug kho tau.
Txais tos tiv tauj peb kom hloov koj cov kev xav tau tshwj xeeb.
Txuas Sib Txuas Kev Sib Txuas

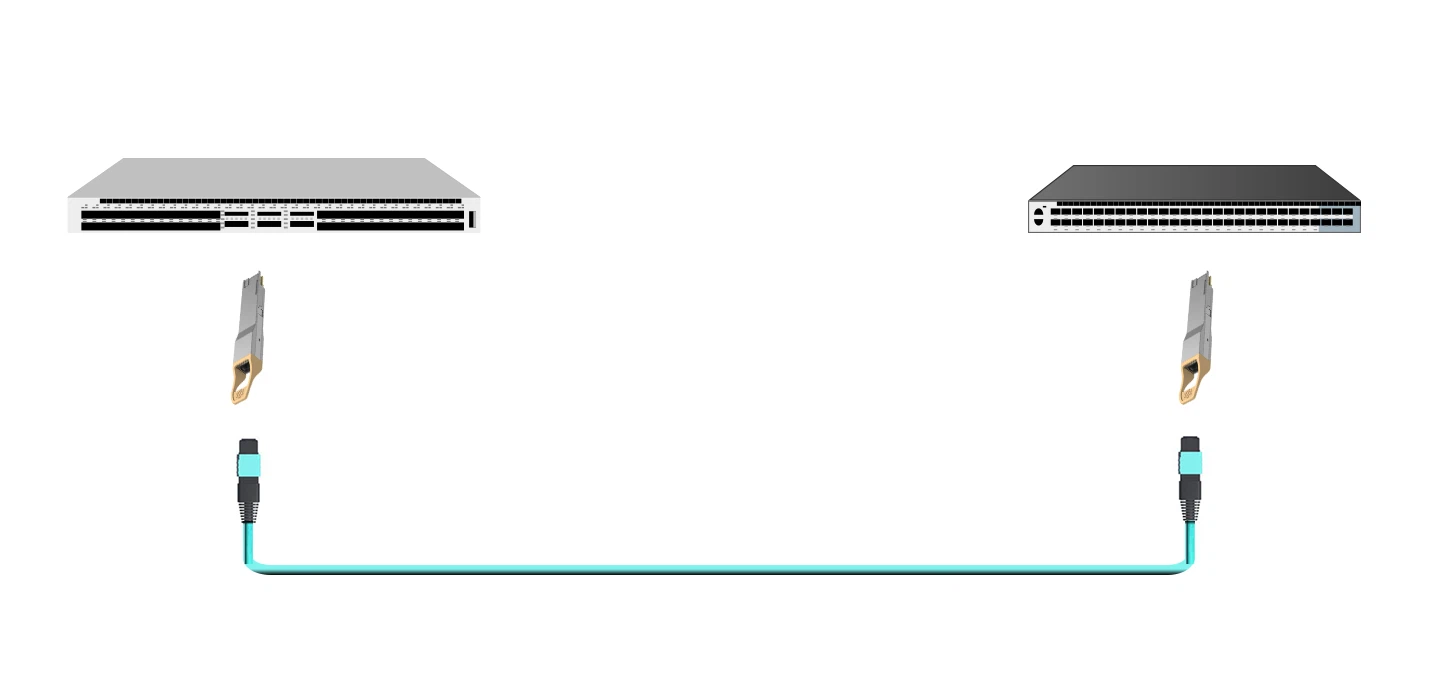

10G lub cev sib haum nrog kev daws teeb meem
1. Tub ntxhais kab cabling:
a. Cov Khoom Sib Txuas Kev:
Hauv qhov tseem ceeb txuas, ib qho hloov yog nruab nrog tus10G SFP + 300 m 850nmKho qhov muag transceiver macule xa thiab tau txais cov cim. Cov qauv no pab tau cov ntaub ntawv kis tau nthuav dav txog li 10 Gbps, nrog qhov kev sib kis tau ntev ntawm 300 meters, ua rau lawv haum rau cov chaw muab cov ntaub ntawv thiab cov chaw loj network.
b. Txoj Kev Sib Txuas Fiber Ntau:
Kev sib txuas yog tsim siv ntawmLC UPC mus rau LC UPC Duplex OM4 cov kab sib npaug ntawm thajlossisMTP LC 12F COMET PART CABLE.
c. Fiber ntau ciling:
24F 2 × 12F MBO-6LC MBO Cassette, muaj 24 LC cov qauv Duplex, tau siv nrog ib1u high - ntev fiber ntauCov. Cov teeb tsa no kho cov kev tswj hwm thiab minimizes cable swb.
2. Tub ntxhais kom nkag mus txuas ntxiv:
16f MBO {- mpo poj niam lub cev cable om3lossis12F MTP MPO Fiber NtauYuav siv tau los hu rau kev sib txuas lus tseem ceeb thiab nkag mus rau hauv cabling.
3. Kev nkag mus rau cov kev daws teeb meem:
Tib txoj kev sib txuas ntawm cov tub ntxhais tseem tuaj yeem siv rau kev nkag mus rau cov kev sib txuas lus daws teeb meem, ua kom muaj zog thiab sib xws thoob plaws hauv lub network.
Ntawv pov thawj
Piam
Cawm kab CPPR
ISO
RoHS
Tag nrho cov kev sib tw ntawm kev ntsuam xyuas kev ntseeg tau los ntawm peb -} ib tog lab
Coupling Test
Poob tes
Kev kuaj tsis ntev
High - Tiav Kub Tas Thiab Kev Ntsuam Xyuas Vaum
Siab - qhov ntsuas kub tsawg
Kev Xeem Tawm
Seem Micro Hla ntu kuaj xyuas
Tiv taus rov ua dua dabtsi
Kev kuaj ib leeg ntsug
Ntsuas Qhov Ntsuas Kub
UV Test
Kev Xa Tawm (7-15 Hnub)
Daim Ntawv Qhia Khoom
Tus naj npawb ntawm cov fibers koj xav tau
| 1 | 12 |
| 2 | 24 |
| 3 | 36 |
| 4 | 48 |
| 5 | .... |
| 6 | Kab lig kev cai |
Cov kev sib txuas hom koj xav tau
| Metp | txiv neej los poj niam |
| Metp | APC lossis UPC |
| Lc | APC lossis UPC |
Lub cheeb ntawm kiv cua - tawm cable
| 1 | 1.8mm |
| 2 | 2.0mm |
| 3 | 3.0mm |
Qhov ntev
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Kab lig kev cai |
Yuav ua li cas peb tuaj yeem sawv ntawm koj
- Cov lus teb ceev tsis pub dhau 24 teev
- Ib - rau -} ib txoj kev pab tswv yim
- Pab kws tshaj lij pab pawg txhawb nqa (RL tuaj yeem ncav cuag 85dB / qib B txuas)
- Super nruj metric tswj (tiag 1000 zaus ntsaws cov kev sim)
- Muaj Ntau Lawm Ntau Lawm
- Tsis txhob hloov tus nqi
Cov cuab yeej siv tau optica tau zoo meej, yooj yim thiab yooj yim, ntsuab thiab ib puag ncig phooj ywg, thiab tuaj yeem tiv thaiv cov khoom hauv txhua cov lus qhia.
Ib qho ntxiv, peb tuaj yeem muab cov ntawv lo cim customized thiab ntim cov khoom siv ntim raws li cov kev xav tau ntawm cov neeg siv khoom sib txawv.
Txais tos los tham peb!
