Shenzhen Optico Kev Sib Txuas Lus Co., Ltd. yog ib lub tuam txhab ntseeg siab tshaj plaws thiab cov neeg muag khoom ntawm mtp® / mpo master fiber thaj cable kuaj kab il hauv qab 0.10db hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale zoo customized khoom ntawm tus nqi sib tw hauv peb lub hoobkas. Yog tias koj muaj lus nug txog cov qauv dawb, thov koj xav email rau peb.
Khoom Description

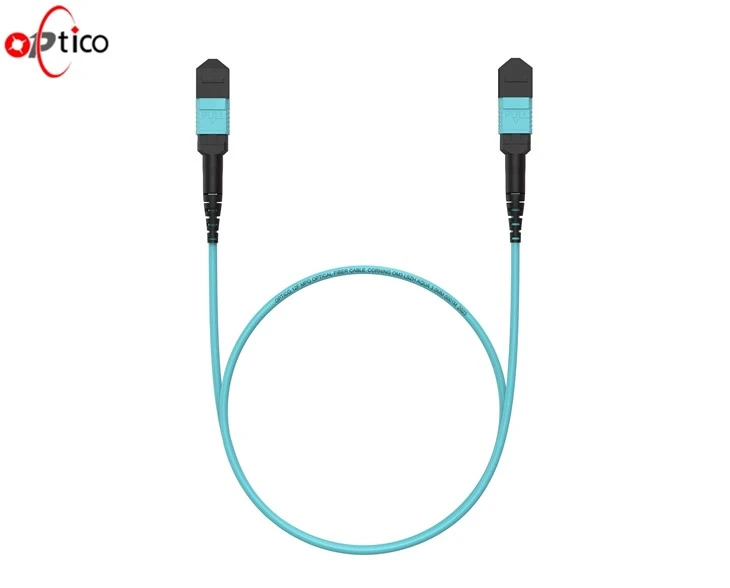

Txhim kho MTP® Master Cable nrog Xaus -Face Coating, IL Tsawg dua lossis sib npaug rau 0.10dB
MTP / MPO xeem kab yog tus qauv tus qauv txuas txuas rau MPO cov khoom kuaj ib puag ncig. Nws muaj qhov ua tau zoo tshaj plaws, qhov tseeb- siv kawg- lub ntsej muag txheej uas txhim khu kev tiv thaiv kev hnav, kev sib kis, thiab rov ua dua. Insertion poob tsawg dua los yog sib npaug rau 0.10dB, thiab rov qab poob ntau dua lossis sib npaug li 70dB, tuaj yeem sawv ntsug txog ntau dua 1000+ mating times.
Cov yam ntxwv tseem ceeb
1. Xaus-lub ntsej muag coated los tiv thaiv puas thiab paug.
2. 200+ kev ntxig / tshem tawm lub voj voog yam tsis muaj qhov cuam tshuam kho qhov muag
3. Precision-tuned rau MPO/MTP® tus tswv-qib xeem ib puag ncig
4. Zoo tagnrho rau siab -Kev ntseeg tau QA labs, ib puag ncig huv si, thiab daim ntawv thov rov ua dua
4. Ua raws li cov qauv thoob ntiaj teb (IEC/IEEE/ANSI/TIA)
Khoom Specifications
| Lub cev muaj zog | Parameter |
| Fiber suav | 8/12/16/24 |
| Fiber hom |
Corning SM / MM |
| Hom Connector | MTP los yog MPO, coated |
| Polarity | Hom A / B / C |
| Cable Jacket | LSZH/OFNP/OFNR |
| Jacket Xim | Daj |
| Cable Diameter (hli) | 3.0 |
| Yam tsawg kawg nkaus Khoov Radius | 7.5 |
| Lub sijhawm sib tw | 1000+ |
| Optical Properties | Parameter | ||
| Insertion poob (dB) | Ultra Low Loss Test kab | ||
| Tsawg dua lossis sib npaug li 0.10 | |||
| Rov Los Loss (dB) | Ntau dua lossis sib npaug li 70 | ||
| Lub wavelength (nm) | 850/1310/1550 | ||
| Tensile zog (N) | Lub Sij Hawm Ntev | Lub Sijhawm luv | |
| 70 | 220 | ||
| Ua haujlwm kub (degree) | -40 ~ +85 | ||
| Cia kub (degree) | -40 ~ +85 | ||
Daim ntawv thov khoom
siab -QA labs kev ntseeg siab, ib puag ncig huv si, thiab cov ntawv thov rov ua dua
Exquisite Product Details
Vim li cas xaiv Shenzhen Optico
Cov khoom zoo pib los ntawm cov khoom zoo
Optico tsuas yog xaiv cov khoom ntawm cov khoom zoo -cov npe paub. Fiber cores yog los ntawm Corning, YOFC thiab Coherent / Nefurn, Fujikura, connectors yog los ntawm US Conec MTP, Senko, Suncall thiab lwm yam. Rau cov ntaub ntawv tsho, peb tau cog lus kom ua tau raws li OFNR, OFNR, LSZH thiab Europe CPR cov cai.
Cov khoom siv polishing zoo thiab nruj kawg -lub ntsej muag kuaj
Optico tshwj xeeb hauv polishing thiab muaj cov khoom siv tes ua ntawm kev ua MPO kab xeem (tsawg dua lossis sib npaug rau 0.10dB). IL/RL parameters yog nruj me ntsis raws li qhov yuav tsum tau muaj. Txhua yam khoom yuav dhau los ntawm kev txheeb xyuas polarity, kawg -kev tshuaj xyuas lub ntsej muag geometry thiab 3D kos nyob rau hauv 400x microscopes.
Customization daws tau txais tos
Nrog ib pab neeg ua haujlwm paub txog, Optico muaj zog los kho cov kab teeb tsa, muab cov duab kos thiab qhia cov kev daws teeb meem raws li qhov xav tau. Rau siab -MPO kev sib txuas ceev ceev, peb muaj peev xwm sib txuas ntau qhov chaw los txhawb koj cov haujlwm, txhim kho qhov chaw teeb tsa thiabmuab kev hloov pauv yav tom ntej - pov thawjkev daws teeb meemuas haum rau kev hloov.
Peb muab sijhawm luv luv
Raws li cov chaw tsim khoom MTP / MPO, peb khaws cov khoom siv MPO / MTP hauv Tshuag, thiab peb muaj kev sib raug zoo ua lag luam nrog cov saw hlau. Qhov no yuav ua kom peb ua tau sai los ntawm kev txiav txim tso rau kev tsim khoom, txo lub sijhawm xa khoom rau cov neeg siv khoom, uas yog qhov tseem ceeb tshwj xeeb hauv cov xwm txheej tsis tau xav txog xws li lub sijhawm COVID-19 thiab kev ua tsov rog.
OPTICO Main Certificate
CE
CPR
ISO
RoHS
Kev xa tawm sai thiab ntau yam khoom xa tuaj (7-15 Hnub)
OPTICO muaj ntau yam kev xaiv xa khoom, suav nrog huab cua freight, hiav txwv freight, av freight, thiab nthuav shipping los ntawm cov neeg muab kev ntseeg siab zoo li FedEx, DHL, thiab UPS. Txawm hais tias koj xav tau kev ceev, tus nqi -kev ua tau zoo, lossis kev hloov pauv, OPTICO tau pab koj. Cia siab rau OPTICO kom tau txais koj cov khoom uas lawv xav tau mus, nyab xeeb thiab raws sijhawm.
Yuav Ua Li Cas Peb Sawv Los Ntawm Koj
Teb ceev ceev hauv 24 teev
Ib -rau-ib Kev Pabcuam Kev Pabcuam
Kev Pabcuam Kev Pabcuam Kev Ua Haujlwm
Super nruj Tswjhwm zoo
Muaj peev xwm ntau lawm
Tsis txhob Hloov Tus Nqi Arbitrarily
Tom qab -Kev Pabcuam Muag
Thaum koj ntsib teeb meem nrog koj cov khoom siv kho qhov muag lossis lub kaw lus, xav tiv tauj peb thiab xa daim ntawv thov kev pabcuam ntawm:
Xov tooj: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: Qhov txawv ntawm MTP thiab MPO connectors yog dab tsi?
Q: Puas yog koj cov cables sib xws nrog 400G / 800G daim ntawv thov?
Q: Koj puas muab kev ntim khoom lossis daim ntawv lo customization?
Cim npe nrov: MTP® / MPO Master Fiber Patch Cable Test Kab IL Hauv qab 0.10dB, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, lag luam wholesale, customized
