SC Fiber Reflector Pigtail Hom
Optical fiber (FBG) reflector, tseem hu ua fiber Bragg grating lim, feem ntau yog ntsia rau pem hauv ntej kawg ntawm qhov kho qhov muag network ONU. Ua ke nrog cov khoom siv OTDR, nws tuaj yeem paub qhov pom kev txuas qhov txuas-taw tes (PTP) lossis taw tes-rau-ntau (PTMP) kev soj ntsuam kev sib txuas, uas tuaj yeem ua kom nrawm, Qhov cuam tshuam ntawm qhov tsis txaus ntseeg ntawm lub network.
Nta:
Tus qauv loj, txhim kho nrawm
High-precision ceramic ferrules yog siv los ua kom tau qhov siab-tiav cov kev sib txuas ntawm cov txuas txuas kom paub tseeb lub sijhawm ntev ntawm cov neeg kho tshuab thiab kho qhov muag.
Optical fiber (FBG) kev cuam tshuam los ntawm OPTICO txaus siab rau kev ua haujlwm ntawm -20 ~ 70 ℃, nrog qhov nruab nrab ntau dua 500 ~ 1000 ntsaws hauv kev sim, kev ntsuas ruaj khov thiab ntseeg tau zoo
Tsawg poob zoo tsis txaus
Siab ua kom pom tseeb
Yooj yim installation
Daim ntaub ntawv:
FTTX
Cov ntaub ntawv chaw
OTDR xeem
Daim ntawv pov thawj:

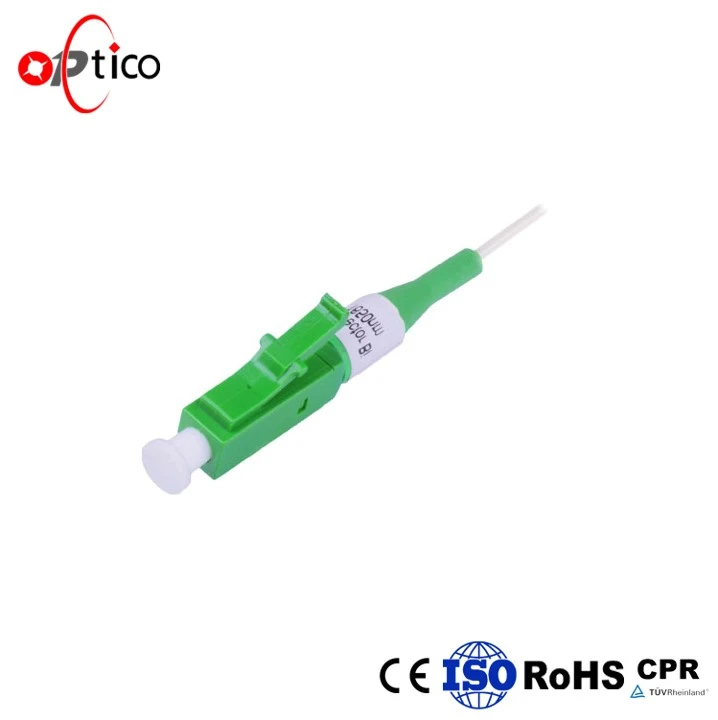

Lub LC pigtailed fiber (FBG) reflector muab los ntawm OPTICO muaj qhov zoo ntawm qhov tsis tau ntxig qis, kev ua haujlwm siab, thiab kev txhim kho yooj yim. Nws yog qhov khoom siv kho qhov muag zoo tshaj plaws rau kev sib txuas network txuas thiab tau dav siv hauv PON tes hauj lwm, kuaj qhov siab OTDR, chav kuaj computer nruab nrab, FTTX thiab lwm cov teb.
Yog tias txaus siab, txais tos sab laj.
Cim npe nrov: lc fiber reflector pigtail yam, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, lag luam wholesale, customized
| Tsis | Chav Nyob | SC Fiber Reflector Txiv neej Poj Niam | ||
| Ua haujlwm Wavelength | Kev xa xov wavelength | nm | 1260~1625 | 1260~1600 |
| Cia siab yoj yoj | nm | 1645~1655 | 1620~1630 | |
| Tso tsis tau | dB | 1.4 @ 1260 ~ 1360nm | 1.4 @ 1260 ~ 1360nm | |
| 1.4 @ 1460 ~ 1600nm | 1.4 @ 1460 ~ 1580nm | |||
| 2.0 @ 1600 ~ 1625nm | 2.0 @ 1580 ~ 1600nm | |||
| ＞ 21 @ 1645 ~ 1655nm | ＞ 21 @ 1620 ~ 1630nm | |||
| Rov poob | dB | ＞ 35 @ 1260 ~ 1360nm | ＞ 35 @ 1260 ~ 1360nm | |
| ＞ 35 @ 1460 ~ 1600nm | ＞ 35 @ 1460 ~ 1580nm | |||
| ＞ 25 @ 1600 ~ 1625nm | 25 @ 1580 ~ 1600nm | |||
| 1.0 @ 1645 ~ 1655nm | 1.0 @ 1620 ~ 1630nm | |||
| Kev ruaj ntseg tsis dhau txoj cai | dB | ≤0.4 | ||
| Wavelength depend poob | dB | ≤0.6 | ||
| Kev ntsuas kub tsis sib xws | dB | ≤0.5 | ||
| Nruag hluav taws xob zoo | dBm | ≤27 | ||
| Ferrule hom | / | PC lossis APC | ||
| Kev sib kis | / | Ib txoj kev lossis ob txoj hauv kev | ||
| Kev khiav hauj lwm kub | ℃ | -20~+70 | ||
| Ua haujlwm cov av noo | % RH | 5~95 | ||
| Cia kub | ℃ | -40~+85 | ||
