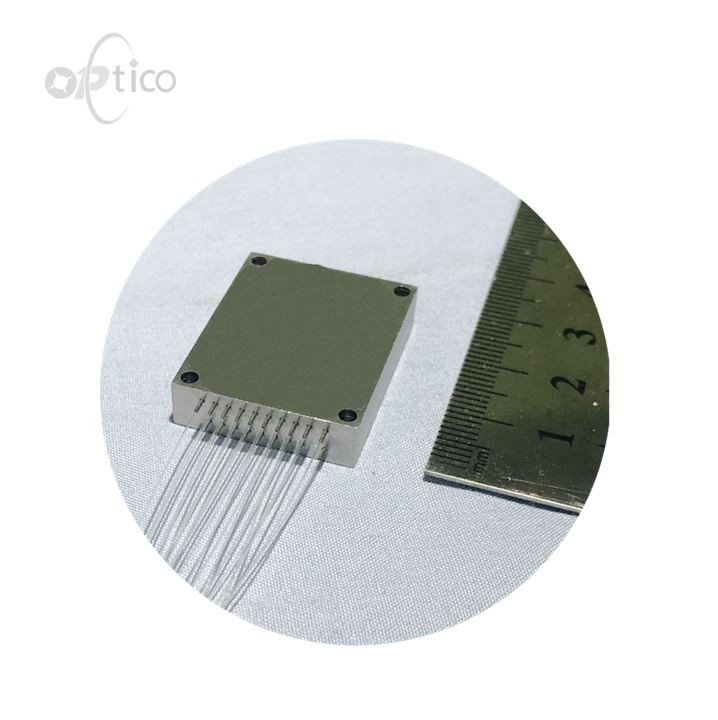

Tom qab 6 lub hlis, OPTICO cov kws tshaj lij pab pawg tau tsim cov qauv no ultra-compact WDM, uas yog qhov me me, tsuas yog 28x14.4x6.5mm. Rau rau lub hlis, pab neeg ua haujlwm tau txuas ntxiv hloov cov duab kos, cov qauv ntim, thiab cov khoom ntim, thiab thaum kawg ua rau tib lub DWDM tuaj yeem tiv taus qhov kev sim ntawm huab cua nrog qhov me me. Lub ultra-compact DWDM module muaj nyob nrog 4, 6, 8,12 thiab 16 raws, thiab muaj qhov zoo ntawm kev sib cais siab, tsis tshua muaj kev poob siab, thiab ruaj khov siab.
OPTICO yog tib lub chaw tsim khoom muaj peev xwm ua tau UC-WDM Devices hauv tag nrho cov lag luam kho qhov muag.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules yog tsim los siv rau hauv C-band tso tawm ntawm DWDM system. Txhawm rau txo cov hluav taws xob dissipation ntawm cov khoom siv nyob rau hauv ib puag ncig sib txawv, AWG pob yog tsim tshwj xeeb nrog kev xaiv cov khoom siv hluav taws xob thermal uas tsis tshua muaj thermal conduction, thiab AWG kev khiav hauj lwm kub yog tswj los ntawm kev siv cov ntawv ci hluav taws xob los yog Peltier TEC nrog cov ntsuas kub ntsuas.
Qhov sib nrug channel rau DWDM yog 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz daim phiaj). Qhov sib nrug me me no tso cai rau xa cov ntaub ntawv ntau ntxiv ib txhij.
| Parameter | Chav tsev | Specifications | |
| Channel nruab nrab wavelength | nm | ITU | |
| Channel sib nrug | GHz | 100/200 | |
| Channel passband | nm | λc ± 0.11/±0.25 | |
| Ripple hla passband | dB | Tsawg dua lossis sib npaug rau 0.5 | |
| Insertion poob | dB | Tsawg dua lossis sib npaug li 2.5 | |
| Muab cais nyob ib leeg | Nyob ib sab | dB | Ntau tshaj los yog sib npaug rau 30 |
| Tsis nyob ib sab | dB | Ntau dua lossis sib npaug li 40 | |
| PDL | dB | Tsawg dua lossis sib npaug rau 0.3 | |
| Kev tsis sib xws | dB | Tsawg dua los yog sib npaug rau 1.0 | |
| Wavelength kub rhiab heev | Nm / degree | Tsawg dua lossis sib npaug rau 0.0003 | |
| Rov qab poob | dB | Ntau dua lossis sib npaug li 45 | |
| Ua haujlwm kub | degree | -40 ~ ntxiv 85 | |
| Cia Kub | degree | -40 ~ ntxiv 85 | |
| Packing Dimension | mm | 28x14.4x6.5 | |
| Hom Fiber | Corning ntshiab nkhaus Fiber, 900um Jacket | Corning Clear nkhaus liab qab fiber ntau | |
| Txuas | / | Raws li kev thov | |
Tsawg qhov ntxig poob.
High wavelength raug
Extended kub ntau yam
Zoo heev thermal stability
Loj heev me me
16 channels DWDM mux thiab demux
ABS pigtailed module
Nws yog txawm peem rau nrog configuration ports xws li Saib, Express chaw nres nkoj raws li cov neeg siv khoom xaiv (saib cov kev xaiv)
Pem hauv ntej vaj huam sib luag yog nruab nrog adapters raws li cov neeg siv khoom xaiv (saib cov kev xaiv)
Passive, tsis muaj hluav taws xob xav tau. (MTBF ca. 500 xyoo)
Tsawg qhov ntxig poob
Yooj yim rau nruab, yuav tsum tsis muaj kev teeb tsa lossis kev saib xyuas
ISO 9001 cov chaw tsim khoom
ISO
ROHS
WDM-CE
Kev kub ceev transceiver
WDM System
MAN Networks
CATV Network
| A | B | C | D |
| Channel Number | Pib wavelength | Fiber ntev | Hom Connector |
Cim npe nrov: 16ch ultra compact dwdm module, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, lag luam wholesale, customized
| Parameter | Chav tsev | Specifications | |
| Channel nruab nrab wavelength | nm | ITU | |
| Channel sib nrug | GHz | 100/200 | |
| Channel passband | nm | λc ± 0.11/±0.25 | |
| Ripple hla passband | dB | Tsawg dua lossis sib npaug rau 0.5 | |
| Insertion poob | dB | Tsawg dua lossis sib npaug li 2.5 | |
| Muab cais nyob ib leeg | Nyob ib sab | dB | Ntau tshaj los yog sib npaug rau 30 |
| Tsis nyob ib sab | dB | Ntau dua lossis sib npaug li 40 | |
| PDL | dB | Tsawg dua lossis sib npaug rau 0.3 | |
| Kev tsis sib xws | dB | Tsawg dua los yog sib npaug rau 1.0 | |
| Wavelength kub rhiab heev | Nm / degree | Tsawg dua lossis sib npaug rau 0.0003 | |
| Rov qab poob | dB | Ntau dua lossis sib npaug li 45 | |
| Ua haujlwm kub | degree | -40 ~ ntxiv 85 | |
| Cia Kub | degree | -40 ~ ntxiv 85 | |
| Packing Dimension | mm | 25x10.8x6.5 | |
| Hom Fiber | Corning ntshiab nkhaus Fiber, 900um Jacket | Corning Clear nkhaus liab qab fiber ntau | |
| Txuas | / | Raws li kev thov | |
