Tib Fiber LAN-WDM Mux Demux feem ntau yog siv rau 5G fronthaul network qhov twg wavelengths tau ntim nruj ua ke dhau O-band, mus txog 8 wavelengths hauv 800GHz daim phiaj (4.5nm). Raws li Thin-Film-Filter (TFF), qhov LAN-WDM Mux Demux no muaj cov qauv me me, tsis tshua muaj qhov nkag tsis zoo, kev sib cais channel siab, thiab kev ntseeg siab tsis sib xws.
| Yam khoom | Tsis muaj | Chav tsev |
| Channel Number | 8 | ch |
| Wavelength Range | 1260~1360 | nm |
| Hla band | CWJ ± 1.1 | nm |
| Channel nkag poob | <> | dB |
| Ripple | Tsawg dua lossis sib npaug rau 0.5 | |
| Kev sib cais channel nyob ib sab | >30 | dB |
| Kev sib cais channel tsis nyob ib sab | >40 | dB |
| PDL | <> | dB |
| Rov qab poob | >45 | dB |
| Fiber hom | G657A1 los yog customized | - |
| Ua haujlwm kub | -40 ~ ntxiv 85 | degree |
| Cia kub | -40 ~ ntxiv 85 | degree |

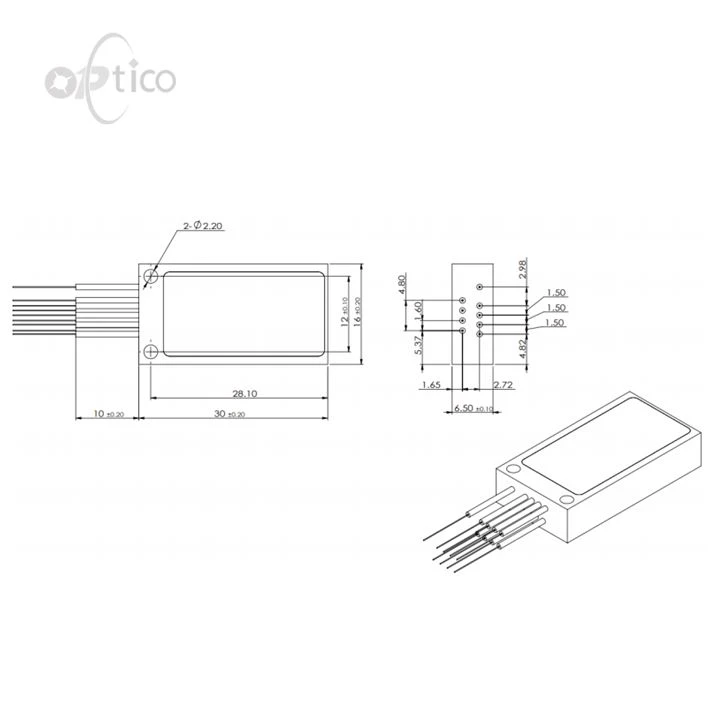

| Dimension | 23x12.4x6.5 | mm |
LAN-WDM wavelength nyob ntawm xoom dispersion wavelength, thiab cov teeb liab kis tau tus mob tsis txwv.
LAN-WDM wavelength division multiplexer txais TFF cov cuab yeej zoo, thiab nws cov qauv tsim pob tuaj yeem txo qhov kev poob qis.
LAN-WDM wavelength division multiplexer txhawb kev lag luam kub -40 degree ~ ntxiv rau 85 degree, haum rau kev siv sab nraum zoov.
LAN-WDM wavelength division multiplexer tuaj yeem sib txawv wavelengths sib txawv rau hauv ib qho fiber ntau kom txuag tau cov khoom siv fiber ntau.
Tsawg dispersion
Qib Industrial
Kev poob qis
Tib fiber ntau bidirectional
Raws li qhov zoo tshaj plaws TFF technology
Zero-dispersion wavelength
Passive, tsis muaj hluav taws xob xav tau (MTBF ca. 500 xyoo)
Ua raws li 100Gbps IEEE 802.3ba Standard
Ua ke / sib cais 4 raws nrog LAN WDM qhov sib nrug
OP-LAN-WDM-ABCD
| 1 | A | Channel naj npawb |
| 2 | B | Pib channel wavelength |
| 3 | C | M-Mux/D-Demux |
| 4 | D | Hom Connector |
Cim npe nrov: 8ch ultra compact lwdm module, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, lag luam wholesale, customized
