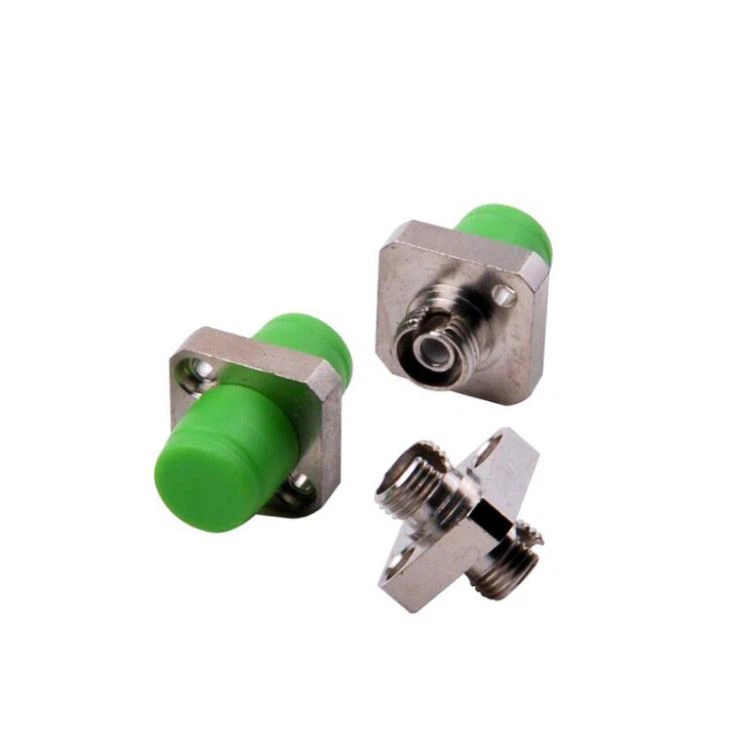

FC Fiber Optic Adapter

FC Fiber Optic Adapter Optico Communication Co., Ltd yog ib qho ntawm lwm tus neeg rau FC Fiber Optic Adapter hauv Shenzhen, Suav. Tsim los ntawm xyoo 2000, peb tau mob siab rau peb tus kheej rau cov khoom siv fiber ntau tsis pub tsawg tshaj 18 xyoo. Peb cov khoom tau ntse exported rau ntau ...

Xa kev nug

Ces

Khoom Profile

FC Fiber Optic Adapter yog ib qho khoom siv dav thiab muaj txiaj ntsig zoo hauv kev sib txuas lus fiber ntau optic. Paub txog nws txoj kev ntseeg siab thiab kev ua tau zoo, nws tau dhau los ua cov khoom tseem ceeb hauv ntau lub tshuab sib txuas.

OPTICO tau cog lus los muab cov khoom zoo fiber ntau optic adapters uas ua tau raws li qhov xav tau ntawm peb cov neeg siv khoom. Peb cov khoom yog tsim los nrog cov cuab yeej tshiab thiab tsim nrog cov qauv siab tshaj plaws kom ntseeg tau tias kev ua haujlwm zoo thiab ua haujlwm ntev.

Khoom nta

Tsawg Insertion Loss thiab High Return Poob: Nws muaj qhov poob qis dua 0.2 dB thiab siab rov qab poob ntau dua 50 dB.

Zoo heev Mechanical Endurance

Zoo Repeatability thiab Exchangeability

Kev ruaj ntseg kub zoo heev: FC Fiber Optic Adapter muaj qhov dav dav ntawm kev ua haujlwm kub, txij li -40 degree rau ntxiv rau 85 degree, uas tso cai rau nws ua haujlwm tau zoo hauv qhov kub thiab txias.

Kev tiv thaiv ib puag ncig (ROHS Ua raws)

Yooj yim rau nruab thiab siv: OPTICO's FC adapter yog ib qho yooj yim rau nruab thiab siv, nrog ib qho yooj yim snap-in lossis ntsia hlau-ntawm coupling mechanism.

FC adapter

Cov ntsiab lus luv luv

Qhov chaw ntawm Keeb Kwm: Shenzhen, Suav

Hom Lub Npe: OPTICO

Qauv nab npawb: FC adapter

Hom: Optical Fibers

Siv: FTTX

Connector Hom: FC-FC

Fiber hom: Singlemode; Multimode

Ntau lawm muaj peev xwm: 60000 pcs / hli

Khoom npe: Adapter FC / UPC D-hom

Ua haujlwm kub: -40 ~ 75 degree

Khoom siv: Hlau

Daim ntawv pov thawj: RoHS, CE, ISO

Ntim Cov Lus Qhia: 50pcs / Blister, tsim kom muaj nuj nqis rau ib lub thawv

Daim ntawv thov

1, CAV

2, Passive / Active ntaus ntawv txiav tawm

3, Kev sib txuas lus hauv xov tooj

4, Metro Kev Lag Luam

5, Aero Kev Lag Luam

6, Local Area Networks (LANs)

7, Data Processing networks

8, Cov khoom siv kuaj

9, Wide Area Networks (WANs)

Specifications

Khoom npe	FC fiber ntau optical adapter
Insertion poob (tseem ceeb)	Tsawg dua lossis sib npaug rau 0.3dB
Hloov pauv tau	Tsawg dua lossis sib npaug rau 0.2dB
Kev vibration	Tsawg dua lossis sib npaug rau 0.2dB
Rov ua dua	Tsawg dua lossis sib npaug rau 0.2dB
Durability	>1000 zaug
Ua haujlwm kub	-40˜75 degree c
Cia kub	-45˜85 degree c
Khoom siv	Hlau
Daim ntawv thov	FTTx, LAN, CATV, Telecom
Daim ntawv pov thawj	RoHS, SGS, CE
Hom Connector	FC-FC
Hom Polish	UAS; APC
Fiber hom	Singlemode; Multimode; OM 3; awm 4; 5
Xim	SM: Xiav, Ntsuab MM: Beige OM3: Aqua OM4: Violet OM5: Txiv qaub ntsuab
Core	Simplex
Flange	nrog flange / nrog pob ntseg;
Hom kev muag khoom	Nruab nrab / OEM / ODM
Siv	Fiber kev twb kev txuas
Custom Design	Muaj
Sample Lead Time	hauv 7 hnub tom qab kev pom zoo
Qhov zoo	Tus nqi sib tw nrog zoo zoo;
Cov nqe lus them nqi	T / T 30 feem pua ua ntej, 70 feem pua ua ntej xa zaub mov.
