Shenzhen Optico kev sib txuas lus Co., Ltd. yog ib tug credible manufacturers thiab lwm tus neeg ntawm 24f poj niam rau 2 × 12 poj niam mpo breakout cable nyob rau hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale siab zoo customized khoom ntawm tus nqi sib tw peb lub Hoobkas. Yog tias koj muaj lus nug txog cov qauv dawb, thov koj xav email rau peb.
Khoom Profile

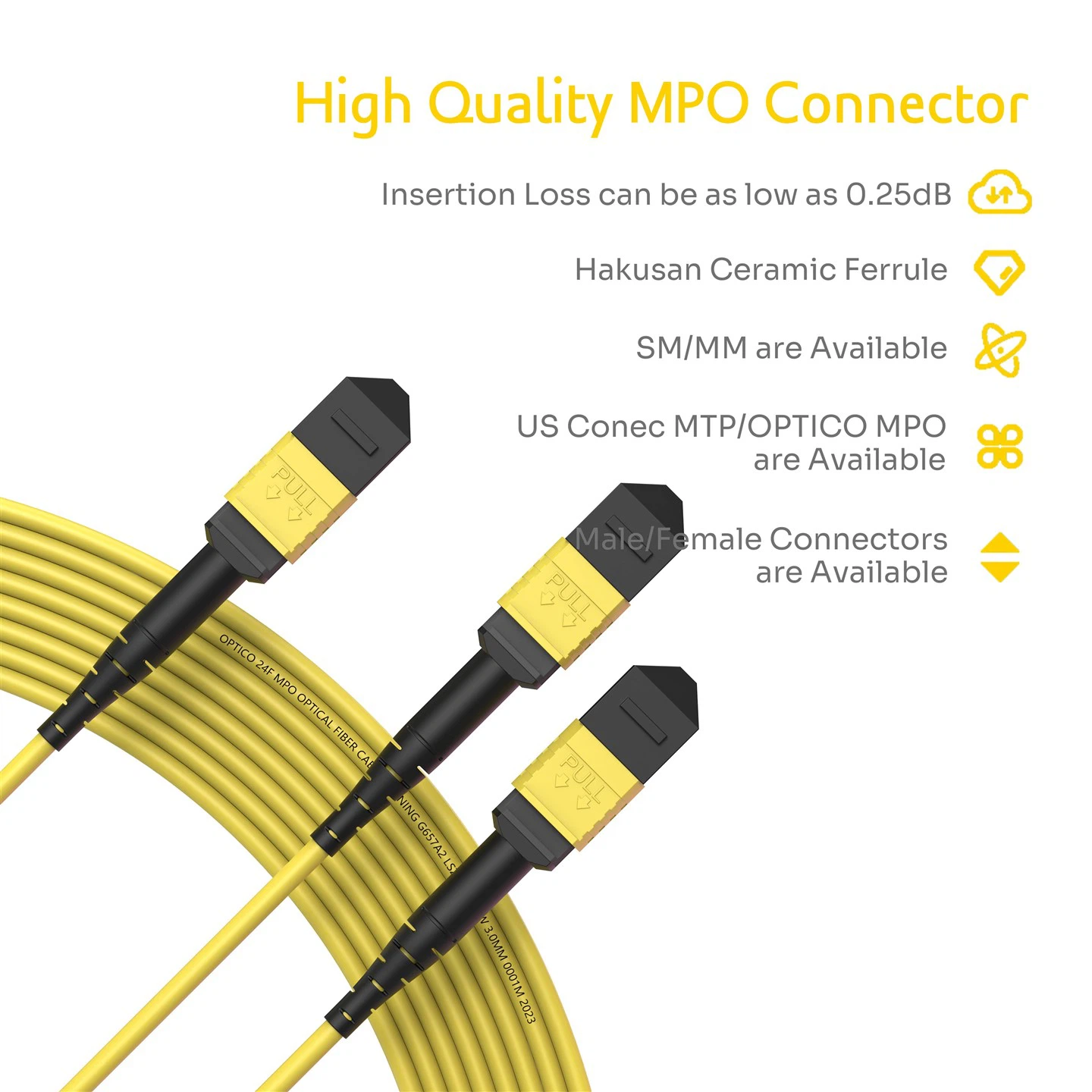

- Qhov no 24F Poj Niam rau 2 × 12 Poj Niam MPO Breakout Cable yog tsim los nrog OS2 ib leeg - hom fiber ntau. Featuring dual-poj niam MPO connectors, nws ua rau kev sib txuas ncaj qha los ntawm 24-fiber trunk mus rau ob txoj kev ywj pheej 12- fiber ntau ceg. Optimized rau 40G / 100G / 400G high-speed networking, 24F Poj Niam mus rau 2 × 12 Poj Niam MPO Breakout Cable muab kev sib raug zoo zoo thiab zoo nkauj cabling, zoo tshaj plaws xa mus rau high-density txee, chaw faib khoom thiab cov neeg rau zaub mov kev sib txuas hauv cov chaw zov me nyuam.
Khoom specifications
| Lub cev muaj zog | Parameter | ||
| Fiber suav | 24F(2×12) | ||
| Fiber hom | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Hom Connector | MPO Poj Niam/txiv neej; US Conec MTP Poj Niam/Txiv neej | ||
| Polarity | Hom A / B / C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Xim | Yellow/Aqua/Magenta/Lime Green | ||
| Cable Diameter (hli) | 3.0 | ||
| Yam tsawg kawg nkaus Khoov Radius | 7.5 | ||
| Fiber thiab khau raj ntev | Customizable | ||
| Optical Properties | Parameter | ||
| Insertion poob (dB) | Txheem Poob | Kev poob qis | Ultra Tsawg Loss |
| Tsawg dua los yog sib npaug li 0.5 | Tsawg dua los yog sib npaug li 0.35 | Tsawg dua lossis sib npaug li 0.25 | |
| Rov Los Loss (dB) | Ntau dua lossis sib npaug li 35 | ||
| Lub wavelength (nm) | SM: 1310/1550; Loj: 850/1300 | ||
| Tensile zog (N) | Lub Sij Hawm Ntev | Lub Sijhawm luv | |
| 70 | 220 | ||
| Ua haujlwm kub (degree) | -20 ~ +70 | ||
| Cia kub (degree) | -40 ~ +85 | ||
ProCov yam ntxwv ntawm cov kav dej
Wide Compatibility nrog Dual Poj Niam Connectors
Nruab nrog poj niam MPO xaus rau kev sib txuas ncaj qha nrog cov txiv neej txuas thiab cov khoom siv chaw nres nkoj uas twb muaj lawm, tsis tas yuav muaj cov khoom siv ntxiv.
Superior Optical Performance
Precision kawg- ntsej muag polishing minimizes optical poob thiab txhim khu kev tiv thaiv - cuam tshuam muaj peev xwm, ua kom ruaj khov kis tau tus mob siab - txuas ceev.
Streamlined Cabling Layout
Integrated breakout qauv npaj txoj kev fiber ntau zoo, txhim kho qhov chaw siv thiab ua kom yooj yim rau niaj hnub tshuaj xyuas thiab tu.
Cov qauv muaj zog & Zoo Environmental Resistance
Txais cov khoom zoo tshaj plaws thiab kev ua haujlwm zoo. Nws nta zoo flex kuj, siab mating durability thiab txhim khu kev qha nplaim retardancy rau ntev - lub sij hawm nyob rau hauv tsev.
Cov khoom siv
High Density Data Center
Rov qab Network
Kev sib txuas ntawm Optical Module
100% nruj me ntsis kuaj ua ntej xa khoom
Peb tau nruab nrog cov cuab yeej ntsuas kev tshaj lij, cov txheej txheem kev xeem tus qauv, thiab pab pawg kuaj xyuas qib siab,
uas tuaj yeem ua tau raws li qhov kev ntsuas kev ua tau zoo thiab kev ua pov thawj zoo ntawm peb cov khoom lag luam tag nrho.
IL/RL test
3D xeem
Xaus ntsej muag Test
Kev ntsuas kub
Daim ntawv pov thawj
CE
CPR
ISO
RoHS
FAQ
Qhov txawv ntawm MTP thiab MPO yog dab tsi?
Cim npe nrov: 24f poj niam rau 2 × 12 poj niam mpo breakout cable, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale, customized
| Lub cev muaj zog | Parameter | ||
| Fiber suav | 8/12/16/24/32/48 Fibers / Kev Cai | ||
| Fiber hom | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Hom Connector | Connector A: US Conec MTP Poj Niam / Txiv Neej; MPO Poj Niam/txiv neej | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Hom A / B / C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Xim | Daj / Aqua / Magenta / Txiv qaub Ntsuab / Custom | ||
| Cable Diameter (hli) | 3 | ||
| Yam tsawg kawg nkaus Khoov Radius | 7.5 | ||
| Fiber thiab khau raj ntev | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion poob (dB) | Txheem Poob | Kev poob qis | Ultra Tsawg Loss |
| Tsawg dua lossis sib npaug li 0.7 | SM Tsawg dua lossis sib npaug 0.35, MM Tsawg dua lossis sib npaug rau 0.5 | Tsawg dua lossis sib npaug li 0.25 | |
| Rov Los Loss (dB) | SM Ntau dua lossis sib npaug rau 60, MM Ntau dua lossis sib npaug rau 20 | ||
| Lub wavelength (nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile zog (N) | Lub Sij Hawm Ntev | Lub Sijhawm luv | |
| 70N | 220N | ||
| Ua haujlwm kub (degree) | -40 ~ +85 | ||
| Cia kub (degree) | -20 ~ +70 | ||
