Khoom profile

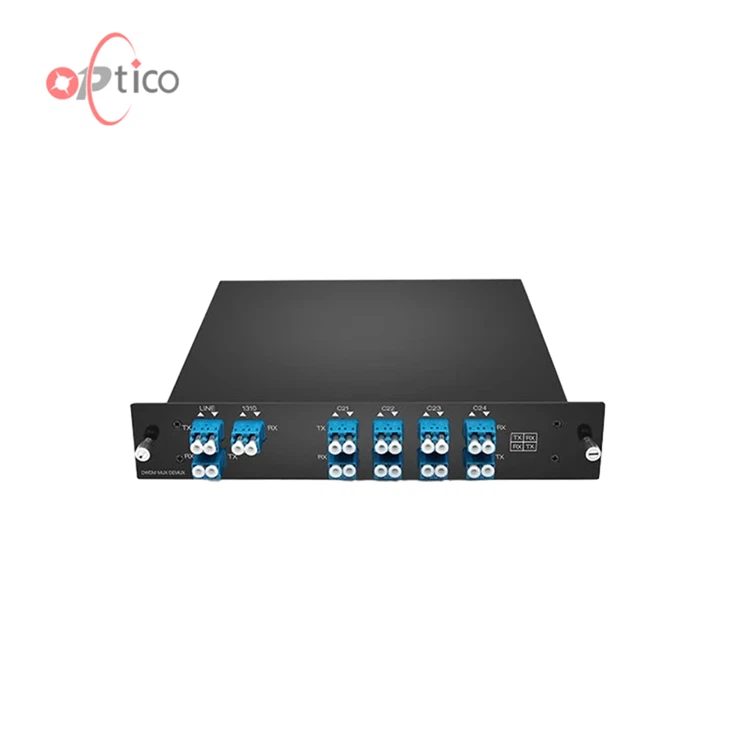

Lub 400G 8CH DWDM Mux Demux Module yog nyob rau hauv pem hauv ntej ntawm optical networking technology, kom siv tau cov optical fibers kom muaj peev xwm, ua tau zoo, thiab txhim khu kev qha optical networking daws teeb meem. DWDM tso cai rau tib lub sijhawm sib kis ntawm ntau cov ntaub ntawv raws li ib qho kev kho qhov muag fiber ntau los ntawm kev siv cov wavelengths sib txawv ntawm lub teeb. Qhov no txhais tau hais tias nws tuaj yeem tuav yim qhov sib txawv ntawm qhov muag pom ib txhij, uas ua rau muaj kev sib kis cov ntaub ntawv muaj peev xwm ntawm 400Gbps.
Khoom specifications
| Yam khoom | Parameter | |||
| 8CH Mus | 8CH Demux | |||
| Ua haujlwm wavelength (nm) | 1260~1380 | |||
| Channel sib nrug | 400G (Oband) | |||
| Center Wavelength (nm) | 1311.43/1309.14/1306.85/1304.58/ 1302.31/1300.05/1297.80/1295.56 | |||
| Hla band (nm) | λC±0.4 | |||
| Ripple (dB) | ＜0.5 | |||
| Insertion poob (dB) | < 3.5 | |||
| Ext Loss (dB) | < 3.5 | |||
| Link poob (dB) | < 5.0 | |||
| Kev rho tawm (dB) | Nyob ib sab | > 30 | ||
| Tsis nyob ib sab | > 45 | |||
| PDL (dB) | Tsawg dua lossis sib npaug rau 0.2 | |||
| RL (dB) | >45 | |||
| Kev taw qhia (dB) | >50 | |||
| Lub zog (mw) | <300 | |||
| Hom Fiber | Corning G657A1 Fiber ntau | |||
| Txuas | LC / UPC | |||
| Ua haujlwm kub (degree) | -20~+70 | |||
| Cia kub (degree) | -40~+85 | |||
| Housing (mm) | 220*190*20 | |||
Khoom nta
Cov ntaub ntawv muaj peev xwm siab: Cov qauv no txhawb nqa yim qhov sib txawv kho qhov muag ib txhij, muab cov ntaub ntawv sib kis tau zoo ntawm 400 Gbps. Nws tso cai rau kev ua haujlwm zoo ntawm cov ntaub ntawv loj hauv cov tes hauj lwm niaj hnub no.
Nqi-Efficiency: Los ntawm kev ua kom muaj ntau cov ntaub ntawv raws li ib qho kev kho qhov muag fiber ntau, 400G 8CH DWDM Mux Demux Module txo qhov xav tau ntawm cov khoom siv fiber ntau ntxiv. Qhov no ua rau cov nqi txuag ntawm fiber ntau optic cables thiab kev teeb tsa cuam tshuam.
Optimized Performance: Lub module muaj qhov qis qis qis qis dua 3.5 dB nrog rau qhov tsis tshua muaj polarization-dependent poob (PDL) tsawg dua 0.2dB, kom ntseeg tau tias cov teeb liab tsawg tsawg thiab kev ua haujlwm zoo ib yam thoob plaws txhua txoj kev. Nws pab tswj qhov zoo ntawm cov ntaub ntawv xa mus.
Zoo heev Channel-rau-Channel Uniformity: Nrog rau kev sib cais txaus ntawm cov channel los tiv thaiv kev sib tham lossis kev cuam tshuam ntawm txhua txoj kev, 400G 8CH DWDM Mux Demux Module ua tiav cov ntaub ntawv muaj peev xwm thiab txhim khu kev qha xa mus rau hauv qhov ntom ntom wavelength division multiplexing systems.
daim ntawv thov
PON Network
Broadband Network
DWDM System
khoom xa tuaj (7-15 hnub)
OPTICO muaj ntau yam kev xaiv xa khoom zoo, suav nrog huab cua freight, hiav txwv freight, av freight, thiab nthuav shipping los ntawm cov neeg muab kev ntseeg siab zoo li FedEx, DHL, thiab UPS. Txawm hais tias koj xav tau kev ceev, kev ua tau zoo, lossis kev hloov pauv, OPTICO tau txais koj them. Cia siab rau OPTICO kom tau txais koj cov khoom uas lawv xav tau mus, nyab xeeb thiab raws sijhawm.
