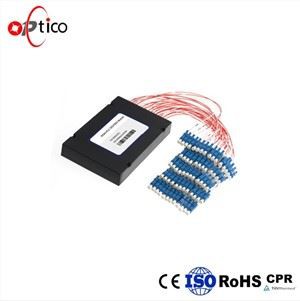

OPTICO' s CWDM multiplexing& demultiplexing LGX module yog TFF raws li kev siv lub tshuab faib ua ntau qhov sib txawv, nrog ntau yam pob ntau thiab ntau qhov kev xaiv wavelength; nws multiplexes kho qhov muag teeb liab ntawm qhov sib txawv wavelengths rau hauv tib qho kho qhov muag fiber ntau siv rau kev sib kis. Demultiplexing yog siv thaum tau txais qhov kawg kom decompose lub teeb liab hauv cov kho qhov muag fiber mus rau hauv cov cim ntawm cov nthwv dej sib txawv.
| Parameter | Chav nyob | CWDM LGX Module | |||||
| Tus naj npawb ntawm cov raws | CH | 2 | 4 | 8 | 12 | 16 | 18 |
| Ua haujlwm wavelength | nm ua | 1260 ~ 1650& 1460 ~ 1650 | |||||
| Kev xa xov bandwidth | nm ua | ±6.5、±7.0、±7.5 | |||||
| Kev poob qhov poob | dB | ≤1.0 | ≤1.5 | ≤2.5 | ≤2.5 | ≤3.0 | ≤3. |
| Kev nyob ib leeg nyob ib leeg | dB | ≥30 | |||||
| Tsis-nyob ib sab channel cais | dB | ≥45 | |||||
| Rov qab poob | dB | ≥45 | |||||
| Kev coj ua | dB | ≥50 | |||||
| Ripple kis tau tus mob | dB | ≤0.5 | |||||
| Pob loj | hli | Tsis tu ncua: L180xW100xH29 MINI, L88xW90xH26, L88xW90xH52 | |||||
| Ua haujlwm kub | ℃ | -40~+85 | |||||
| Hom txuas | LC/PC (lossis kev cai) | ||||||
Qhov Zoo
Qhov poob qis qis ua rau CWDM plug-in module kom muaj lub teeb liab qis dua thaum siv, yog li txo lub zog xav tau ntawm lub teeb liab xa mus
Tus nqi sib cais siab dua ua rau muaj kev sib cais txaus thaum lub teeb liab sib kis hauv CWDM plug-in module, tiv thaiv kev sib tshuam ntawm cov teeb liab los ntawm kev ua rau lub teeb liab sib kis
OPTICO' s CWDM plug -in module muaj cov thev naus laus zis tsim khoom, ruaj khov thiab ua haujlwm tau zoo, thiab txhawb kev ua haujlwm ib puag ncig hnyav los ntawm -40 ° C txog +85 ° C kom ntseeg tau tias muaj kev ruaj ntseg teeb liab.
CWDM plug-in module muab los ntawm OPTICO tuaj yeem siv ntawm nws tus kheej lossis nrog 3U chassis. Qhov loj ntawm lub npov-hauv lub thawv tau tsim los ua kom tau raws li Q/CT 2295-2010 tus qauv
CWDM plug-in module tsim los ntawm OPTICO muaj ntau yam nthwv dej thiab xaiv cov qauv sib txuas, thiab nthuav cov chaw nres nkoj kuj tseem tuaj yeem ntxiv raws li cov neeg siv khoom
Lub thawv plug-in module thiab lub chassis tau tsau los ntawm rivet-hom kho khawm, ua los ntawm UL94V-2 pom zoo cov khoom siv nylon, uas yooj yim rau kev teeb tsa thiab tshem tawm.
Daim ntawv thov:
Kev sib tham hauv xov tooj
Neeg network
Tsev kawm ntawv network
LANs
WANs
CATV Links
OPTICO' CWDM plug-in module ua raws li cov txheej txheem thoob ntiaj teb.
Yog xav paub, txais tos sab laj!
