16CH CWDM MuxDemux

CWDM yog tus nqi qis WDM thev naus laus zis xa mus rau txheej txheej ntawm cheeb tsam hauv cheeb tsam network. Hauv txoj ntsiab cai, CWDM siv lub khoos phis tawj sib txuas mus rau ntau lub khoos phis tawj teeb liab ntawm cov nthwv dej sib txawv mus rau hauv ib qho kev siv fiber ntau rau kev sib kis. Thaum tau txais qhov kawg ntawm qhov txuas, cov teeb liab sib xyaw hauv cov fiber ntau kho qhov muag tau decomposed rau hauv cov yoj sib txawv sib txawv los ntawm kev siv cov kho qhov muag demultiplexer. Teeb liab, txuas mus rau cov khoom siv sib xws. CWDM Mux/Demux Module yog ua raws cov thev naus laus zis lim tshuab. CWDM thev naus laus zis muab kev hloov pauv kom muaj peev xwm ntawm cov khoom siv hluav taws xob tam sim no los ntawm kev ua kom muaj ntau txoj hauv kev (nthwv dej) hla tib cov kab hluav taws xob. Txhua tus channel nqa cov ntaub ntawv ntawm nws tus kheej los ntawm ib leeg, tso cai rau cov tsim qauv network thauj cov ntaub ntawv sib txawv thiab cov txheej txheem rau cov neeg siv khoom sib txawv lossis cov ntawv thov. Nrog tus nqi qis siv hluav taws xob tsawg thiab kev cog lus me me, nws tau siv dav hauv metro kev sib sau ua ke thiab txheej txheej kom ua rau kis tau sai.

Parameter	Chav nyob	Tus nqi
Cov Naj Npawb	-	2	4	8	16
Chaw Chaw	nm ua	20
Central Wavelength	nm ua	1271~1611
Kev khiav hauj lwm wavelength	nm ua	1260-1460 lossis 1460-1620 lossis 1260-1620
Passband	nm ua	IB ± 6.5
Dhau qhab Flatness	dB	≤0.5
Kev poob qhov poob (Hom.)	dB	0.8	1.3	2.4	4.6
Kev poob qhov poob (Max.)	dB	0.9	1.5	2.8	5.0
Nyob Ib Leeg Raug Rho Tawm Channel	dB	≥30
Txwv Tsis Pub Nyob Ib Leeg Channel	dB	≥40
Polarization Mode Dispersion	ps xab	≤0.1	≤0.1	≤0.15	≤0.15
Polarization Dependent Loss	dB	≤0.1	≤0.15	≤0.2	≤0.25
Rov Los Poob	dB	≥50
Kev coj ncaj ncees	dB	≥50
Insertion poob kub rhiab heev	dB/° C.	0.005	0.005	0.007	0.007
Wavelength Kub Hloov	Nm/° C.	0.002
Kev Ua Haujlwm Kub	°C	-10~+70
Cia Kub	°C	-40~+85

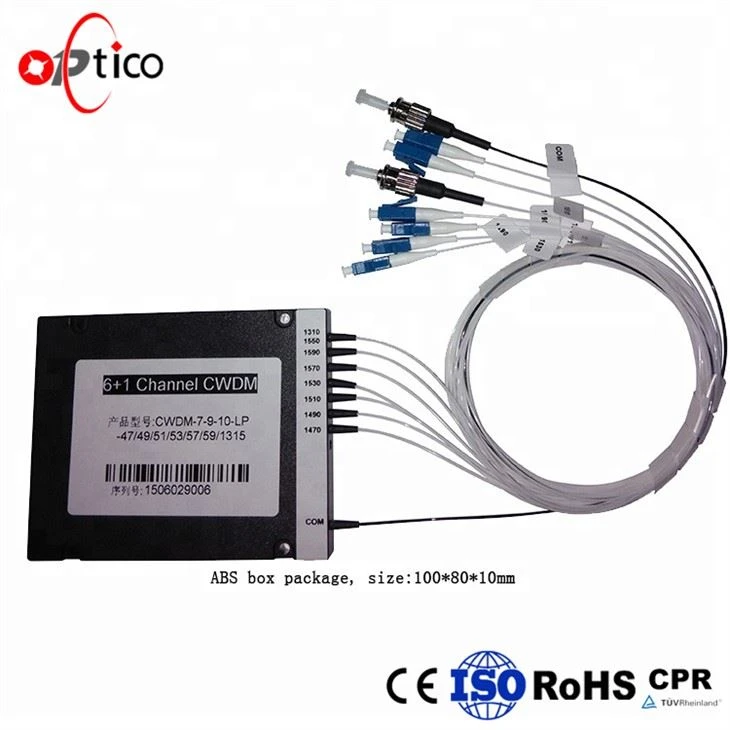

Pob Dimension	hli	ABS lub thawv: 100X80X10mm lossis hloov kho

16CH CWDM Mux Demux

Fnoj:

1. Lub peev xwm xa tawm tau nce ntxiv ntau zaus mus rau kaum ob zaug piv nrog kev xa xov ib zaug ib zaug, uas txuag cov nqi.

2. Tus nqi thiab hom ntawv ntawm lub teeb liab kis los ntawm txhua tus channel yog pob tshab, uas yog qhov muaj txiaj ntsig zoo rau kev sib raug zoo ntawm cov cim digital thiab analog.

3. Nws txuag cov khoom siv kho qhov muag thiab kho qhov muag rov ua kom yooj yim rau kev nthuav dav ntawm cov txheej txheem tsim.

4. Nws tuaj yeem muab kev xaiv nthwv dej, ua rau nws muaj peev xwm tsim kom muaj pob tshab thiab muaj txoj sia nyob WDW txhua qhov kev sib txuas lus sib txuas.

Daim ntawv thov:

CWDM Network
Ntxiv/Tso Qhov System
CATV Fiberoptic System
Metro/Access Network
Fiber Optical Amplifier
Hauv cheeb tsam network
Cov ntaub ntawv chaw
5G network
